Terms and How It Works

Terms

General:

• Attribute — a property or association of an entity;

• Entity — an object in the system (contract, power of attorney, person, group, form, etc.);

• Record — an entity with a set of attributes and a record identifier (RecordRef);

• Record identifier (RecordRef) — the data source identifier and the local entity identifier as a string.

• Data source (Records DAO) — a data source that defines the logic of basic CRUD operations for working with entities.

Data:

• Data Graph — a representation of data that a client can request using an attributes schema;

• Scalar — a final value in the data graph that has no nested attributes that can be requested (string, number, etc.).

• Attributes Schema — a data query description for transforming a data graph into sets (map and list) of scalar values;

How Data Works

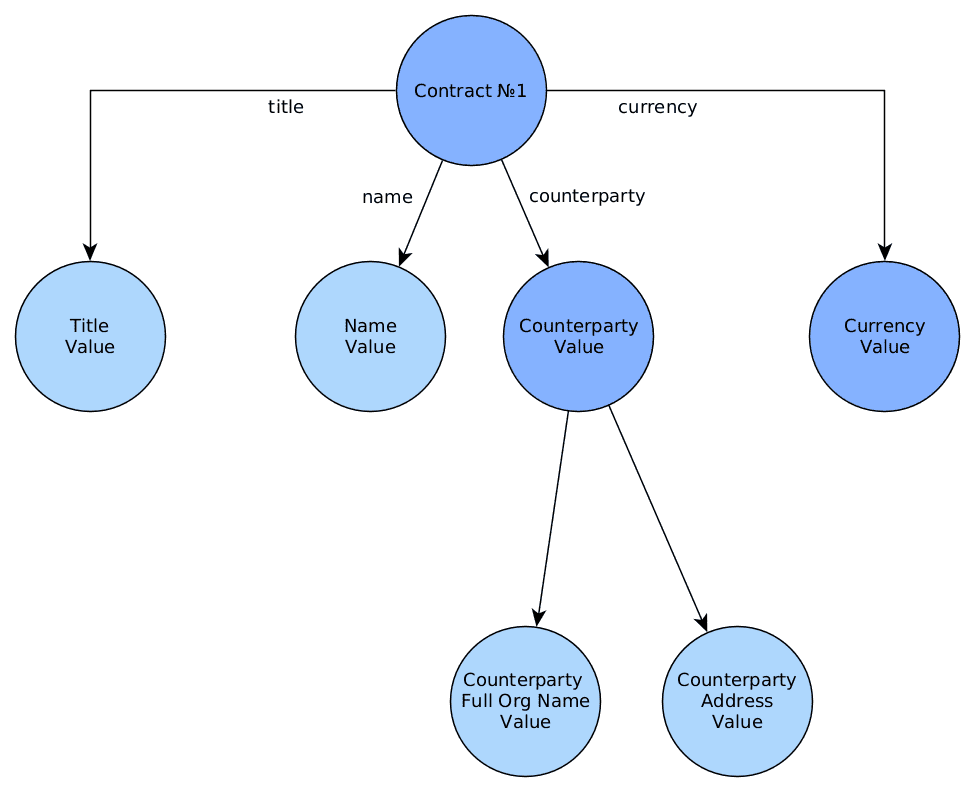

Very often data is not a flat list but a graph where entities reference each other. Below is an example of such a data slice, where we have a contract with four attributes:

• Title — String

• Name — String

• Counterparty — Complex object

  • Full Organization Name — String

  • Counterparty Address — String

• Currency — Complex object

  • attributes omitted for simplicity

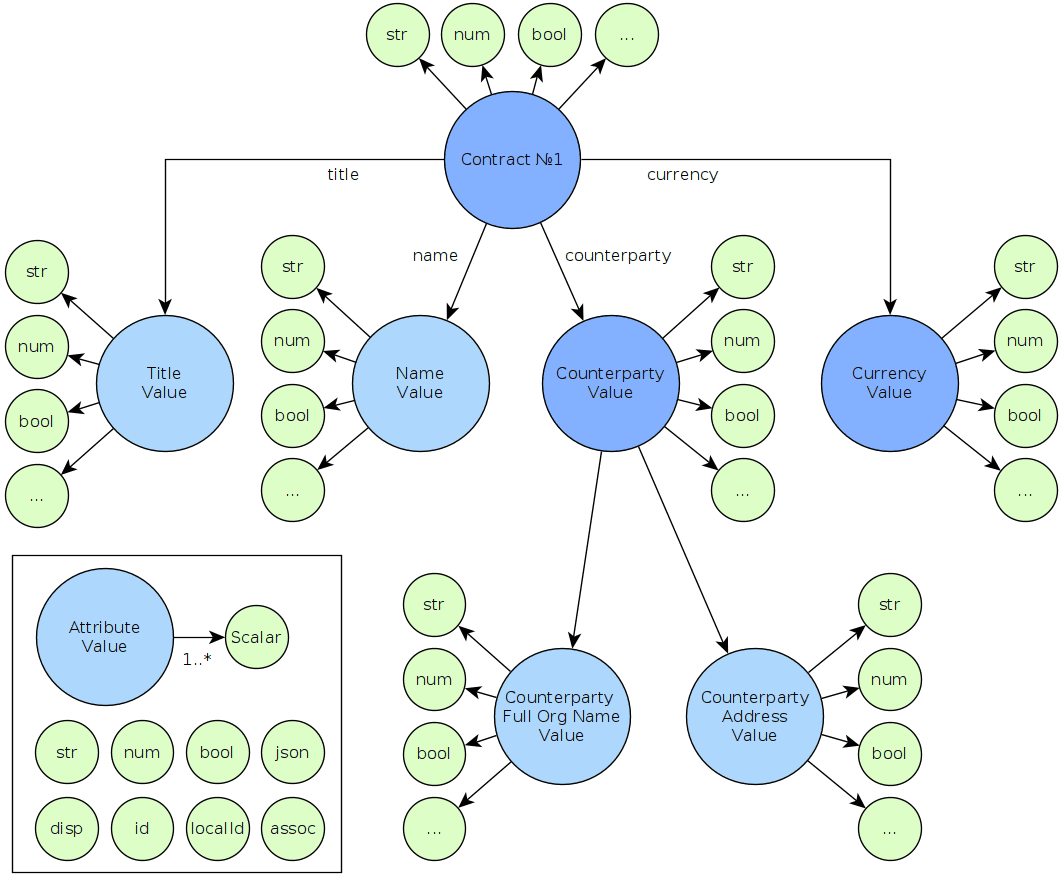

From the Records API perspective, each node of this data graph can be retrieved as the value of one of the scalars:

Primitive scalars:

• disp — Human-readable representation of the value. (Examples: for a contract — “Contract No. 2”, for a user — “Ivan Ivanov”);

• str — String;

• num — Number (double precision; if Double precision is insufficient, use str);

• bool — Boolean value;

• json — JSON representation of the value. Arrays and objects are allowed. See below;

• id — the global identifier of the value, containing the data source identifier and the local identifier. Relevant for complex values such as “Contract”, “Counterparty”, “Currency”, etc.;

• localId — same as id, but without the data source identifier;

Non-primitive scalars:

• ?raw returns raw data in its original form, as-is. This is the only scalar that does not perform any conversion of the source data when loaded.

• ?bin returns binary data. When using JSON format it is equivalent to ?str (data is transmitted as a base64 string), but with formats that support transmitting byte arrays without base64 transformation it provides an advantage in data size (base64 adds 33% overhead).

• ?json is convenient for retrieving the full set of attributes from a record.

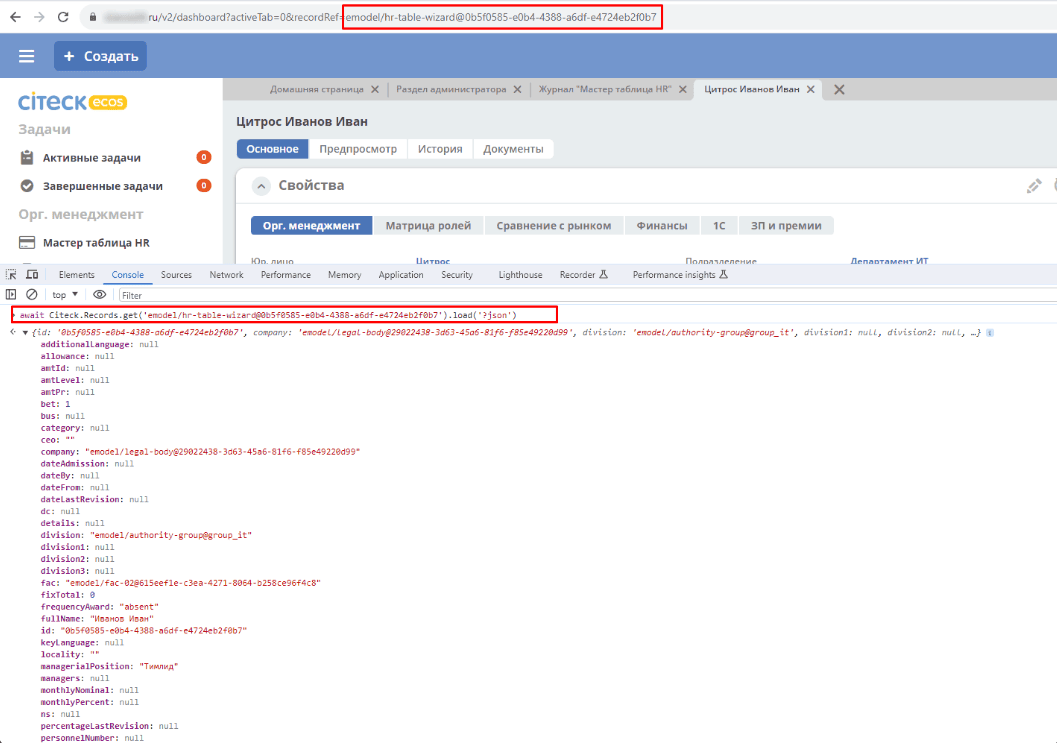

  JavaScript syntax:

  await Citeck.Records.get ('hr-table-wizard@0b5f0585-e0b4-4388-a6df-e4724eb2f0b7').load('?json')

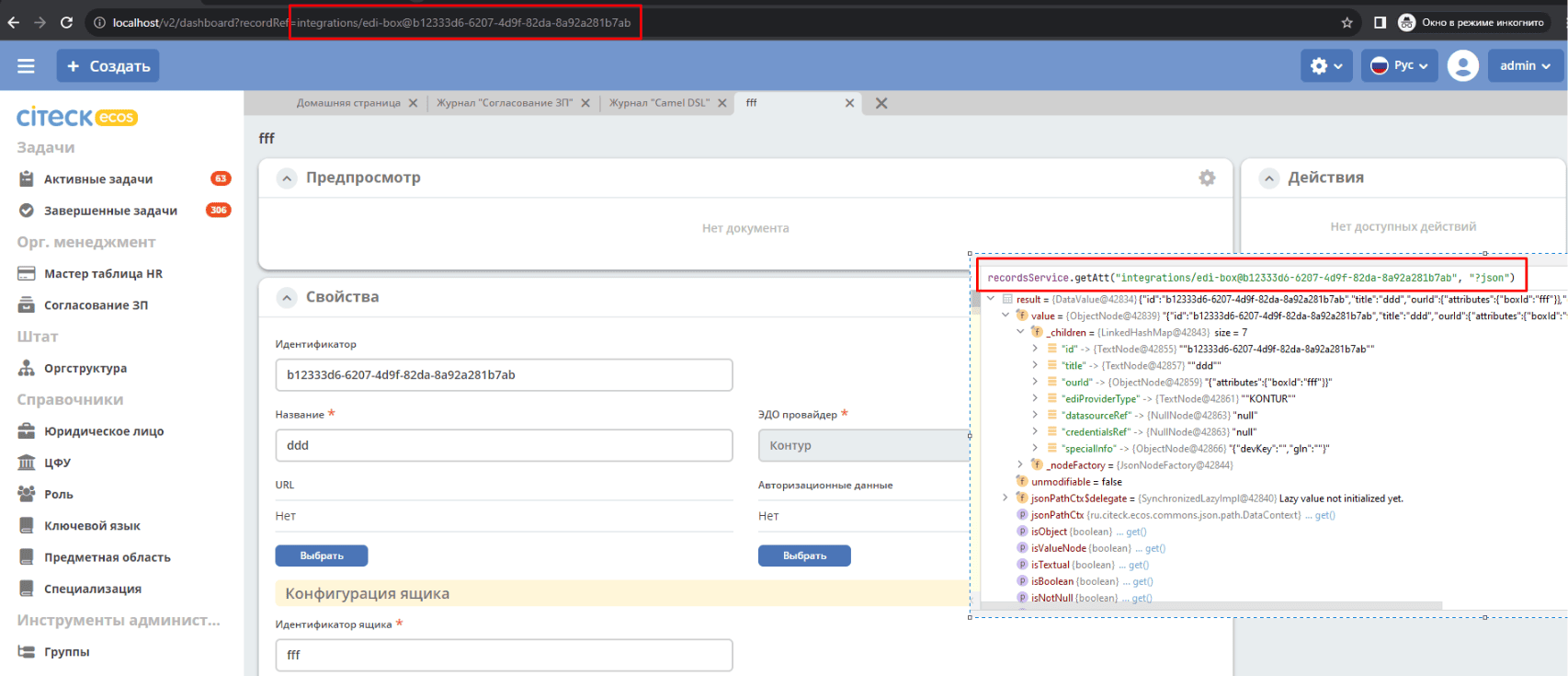

  Java syntax:

  recordsService.getAtt("integrations/edi-box@b12333d6-6207-4d9f-82da-8a92a281b7ab", "?json")




  For example — to retrieve all values for all localizations of an MLText field in a single request, use the “?json” scalar when loading the attribute value.

  Records.get("emodel/test-type@ed955b2d-44c2-4617-b48d-0a6b2e0d5a53").load("name?json")

  ->

  {"ru":"Договор №17362","en":"Contract №17362"}

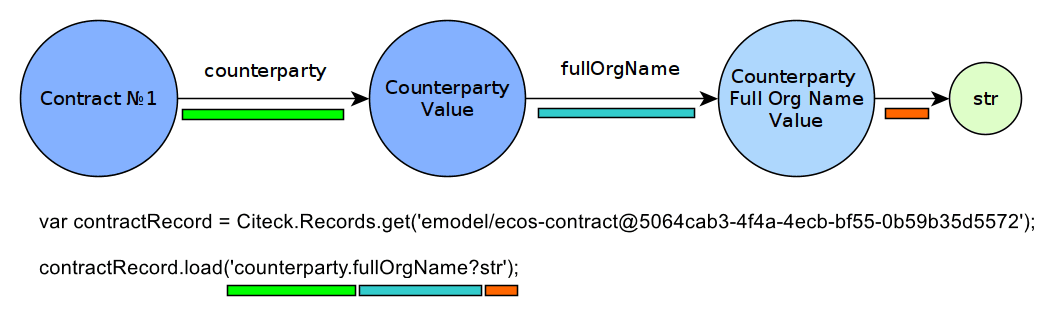

As an example, let us consider retrieving the full organization name of the counterparty for a contract.

Here we use the JavaScript Records API to load the attribute we need.

First line — retrieving a record by its RecordRef identifier. See details

Note

The general form of the identifier is “application/data_source@local_id”, but here only the local_id is present.

Second line — loading the attribute we need. Nested attributes are separated by a dot “.”, and the scalar is indicated by a question mark “?”.

Note

The allowed depth of attribute nesting is unlimited.
