Spring Boot Admin

Spring Boot Admin — system administration interface for Spring Boot web applications.

Available at: https://host/gateway/eapps/admin/wallboard

The interface provides a convenient UI on top of Spring Boot Actuator endpoints and offers:

  • service health checks;

  • metrics monitoring;

  • access to logs;

  • environment information;

  • log level management;

  • thread dump.

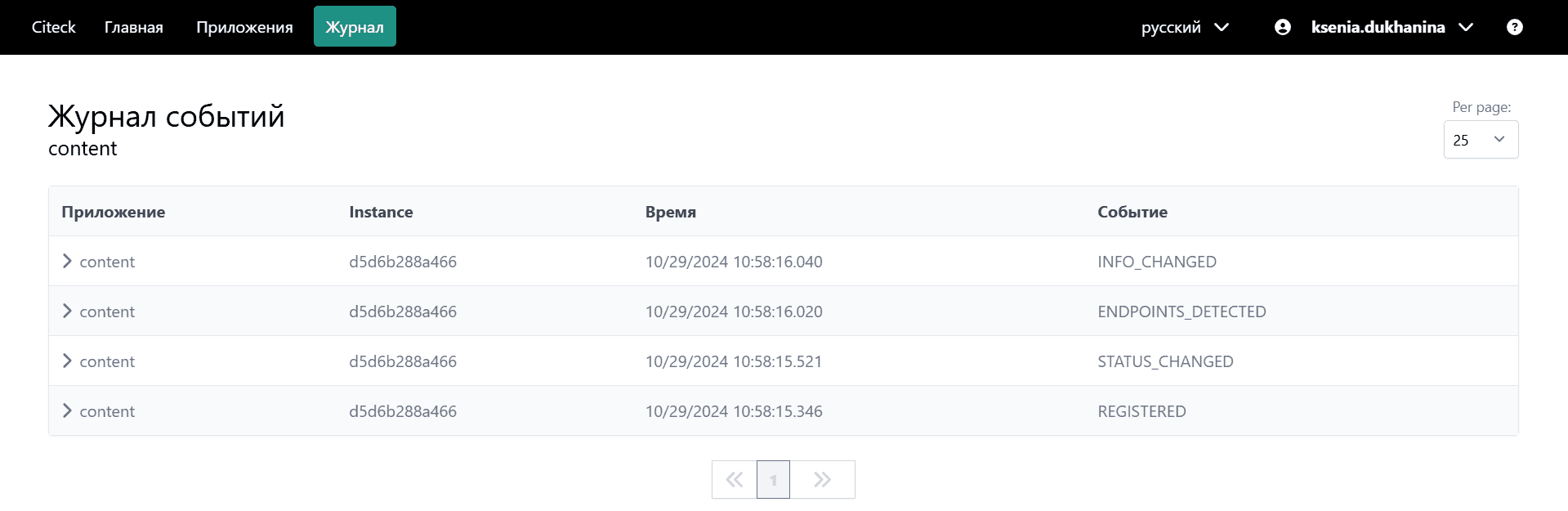

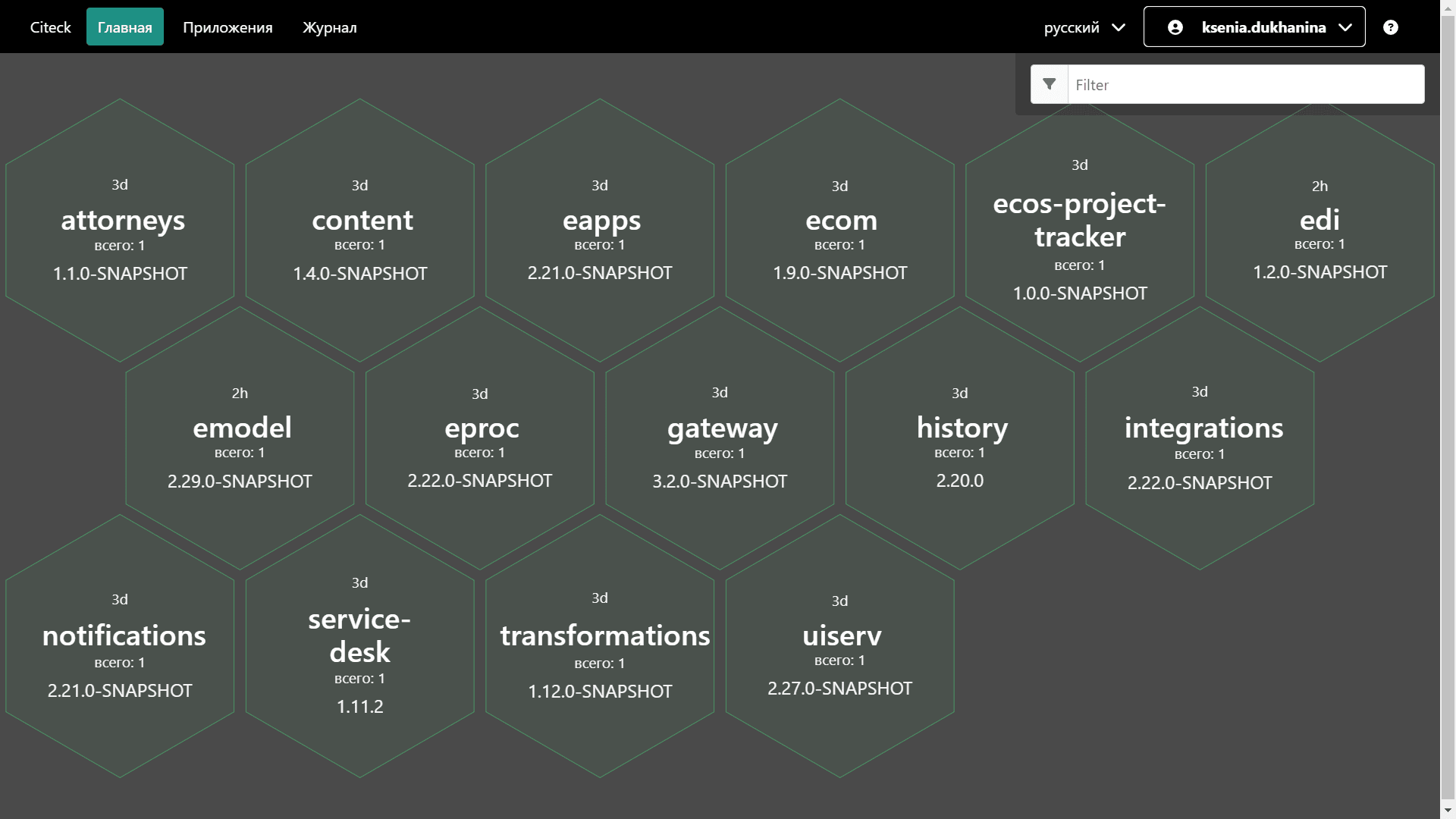

../../_images/016.png ../../_images/025.png
../../_images/033.png ../../_images/042.png

Log Viewing

To view microservice logs directly in the Spring Boot Admin interface, activate the Spring Boot profile admin_logs for the corresponding microservice.

This can be useful during troubleshooting when there is no access to the main log collector.

Note

Available starting from version ecos-webapp-commons 3.21.4.

Documentation

For more details, see the official Spring Boot Admin project information
