Working Schedule 

Note

Using the working schedule requires the “features.working-schedule” license

Without a license, the working schedule will only account for regular weekends in calculations, without considering the production calendar.

Working schedule and production calendar are two interrelated tools for managing working time in the system.

Production calendar records non-working days, public holidays, and shortened days — anything that deviates from the standard schedule.
Working schedule defines the standard working day routine: working days of the week, start and end times, time zone, and the associated production calendar.

Together they enable flexible configuration of employee work schedules and are used across various system modules — for example, to calculate SLA in the Service Desk module.

The working schedule is used for four types of operations:

Add working time to a specific date and time.
Add working days to a specific date.
Calculate the number of working days between two dates.
Calculate the number of working days between two dates with time.

Linking a Working Schedule to a User or Group 

To link a working schedule to a user or group, create the has-working-schedule:schedule association

Time Zones 

The following logic is used when handling time zones in working schedule calculations:

When performing calculations that account for working hours, the following cases apply:

No time zone specified in the date — the time zone from the working schedule is used, and the result will not contain a time zone.
Time zone specified in the date — the service converts the received date/time to the working schedule’s time zone. After all operations are performed, the result is converted back to the original time zone.

Working Schedule Configuration 

The system provides 2 entities for configuring the working schedule.

Production Calendar 

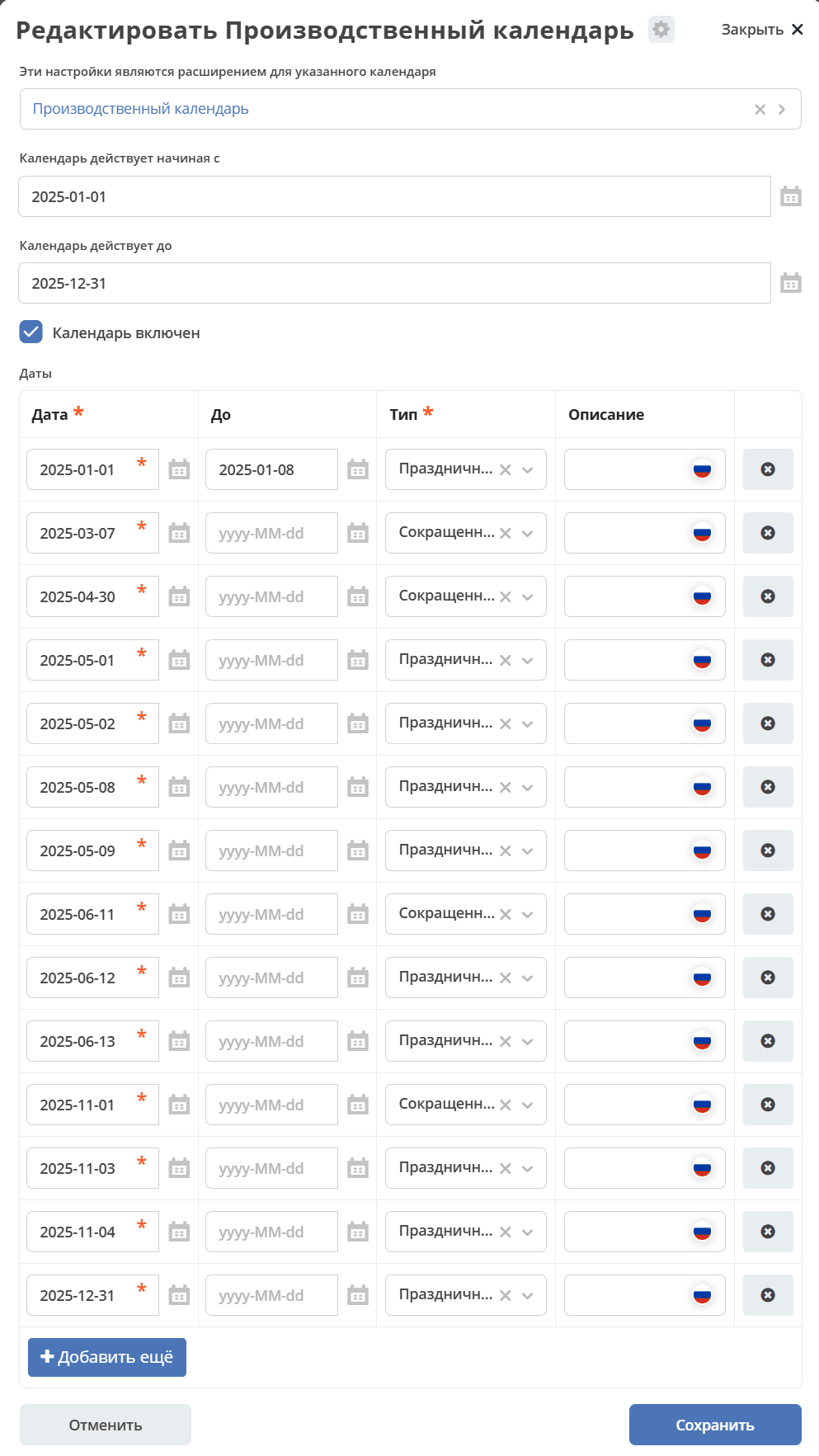

This entity is used to form a list of dates that modify the standard working day routine.

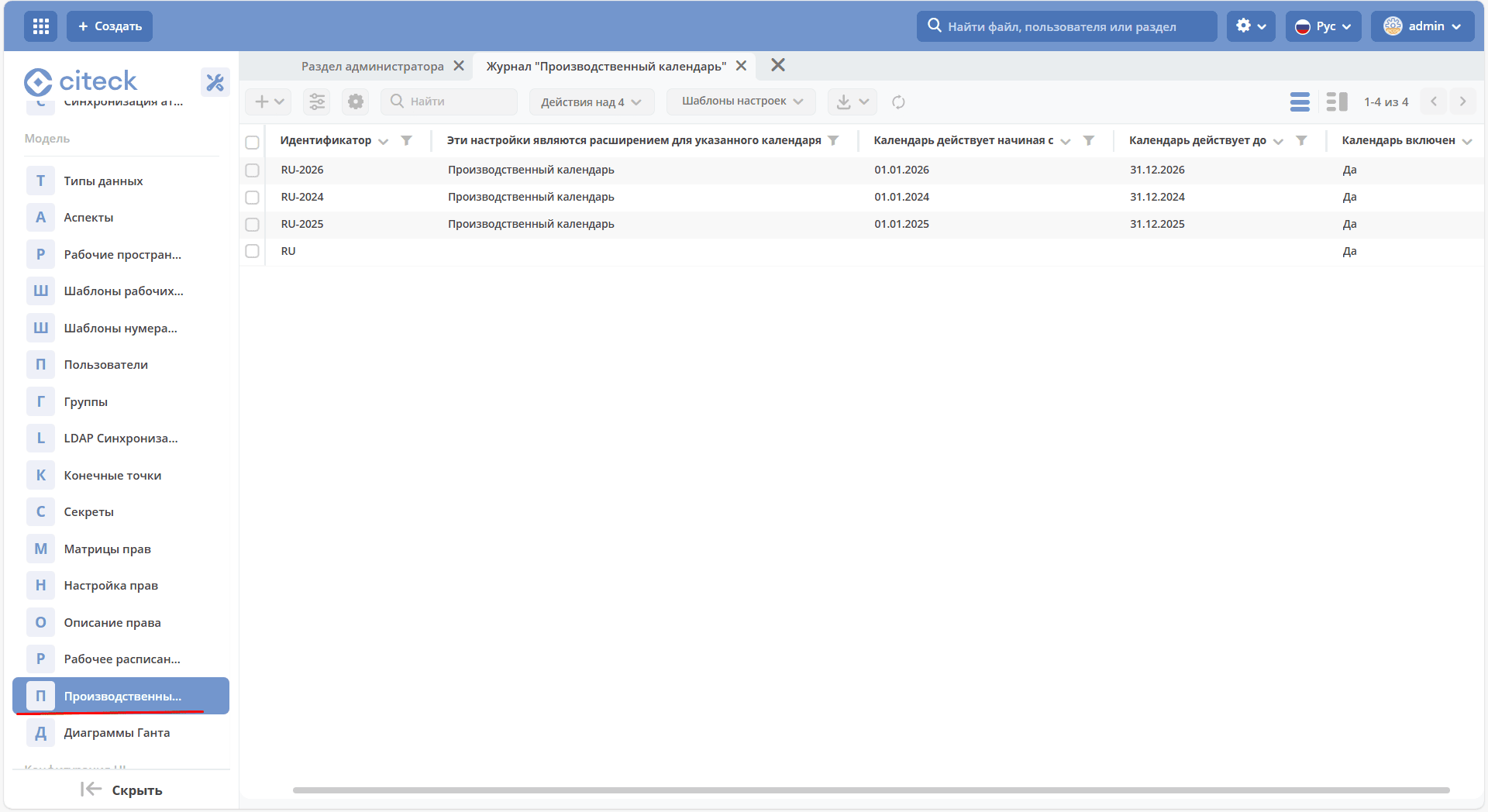

The “Production Calendar” journal (Workspace “Admin Section” - Model) is available at: v2/journals?journalId=working-calendar&viewMode=table&ws=admin$workspace

Attributes:

ID	Type	Description
id	String	Identifier
extensionFor	EntityRef	Reference to the calendar that is extended by this configuration
from	LocalDate	Calendar start date
until	LocalDate	Calendar end date
enabled	Boolean	Whether the calendar is active
dates	List<WorkingCalendarDay>	List of calendar days

WorkingCalendarDay contains the following fields:

ID	Type	Description
date	LocalDate	A specific date or the start date of a range if the until value is set
until	LocalDate	End date of the range (inclusive)
type	String	Type of the date or all dates in the range Allowed types: WORKING — working day. Applicable when a day off becomes a working day HOLIDAY — public holiday SHORTDAY — working day shortened by 1 hour WEEKEND — day off NON_WORKING — non-working day
description	MLText	Description of the day or range

Working Schedule 

Defines the standard working day routine.

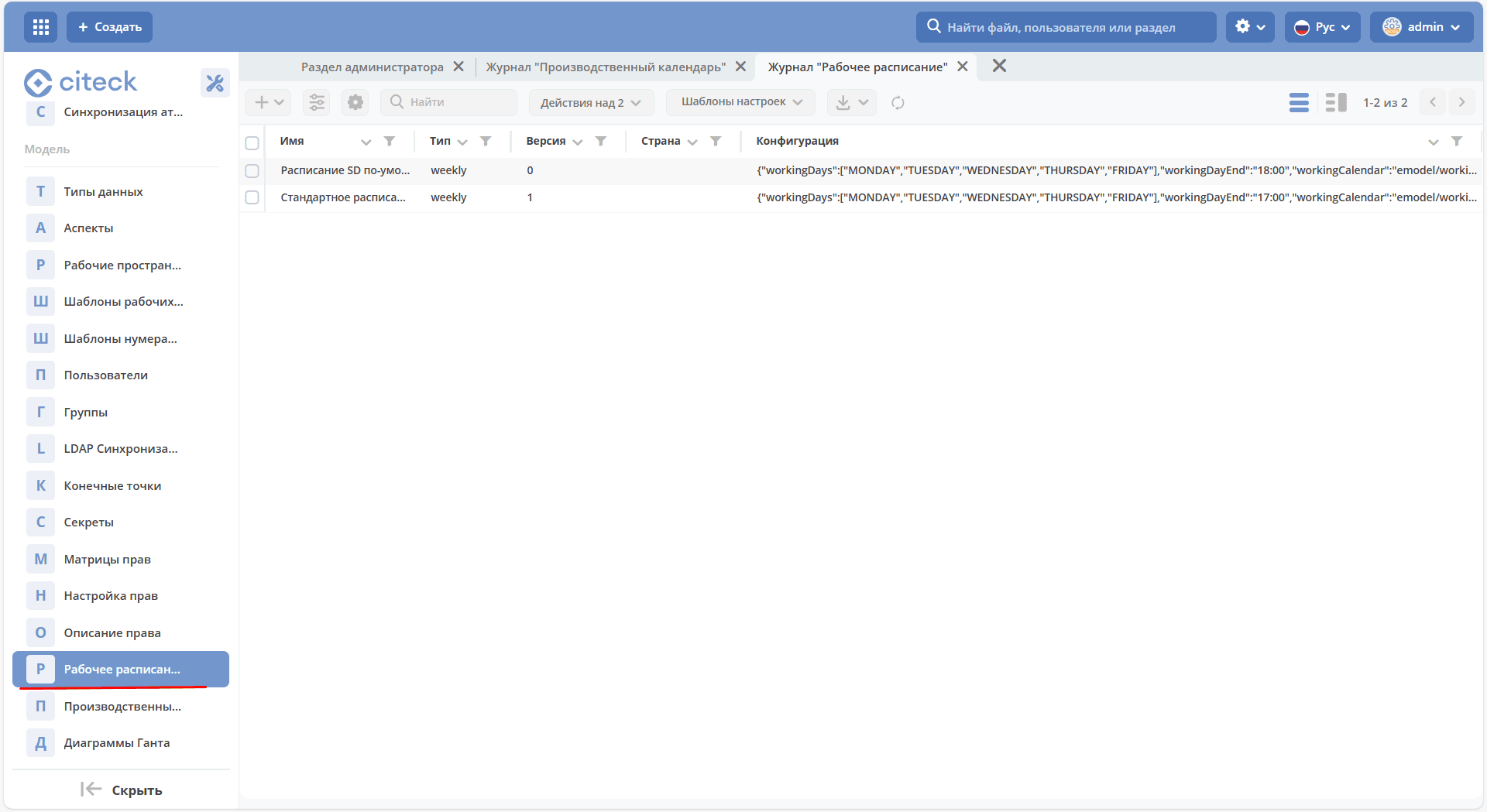

The “Working Schedule” journal (Workspace “Admin Section” - Model) is available at: v2/journals?journalId=type$working-schedule&viewMode=table&ws=admin$workspace

Attributes:

ID	Type	Description
id	String	Identifier
name	MLText	Schedule name
type	String	Schedule type. Currently only weekly is supported
config	ObjectData	Configuration for the schedule type

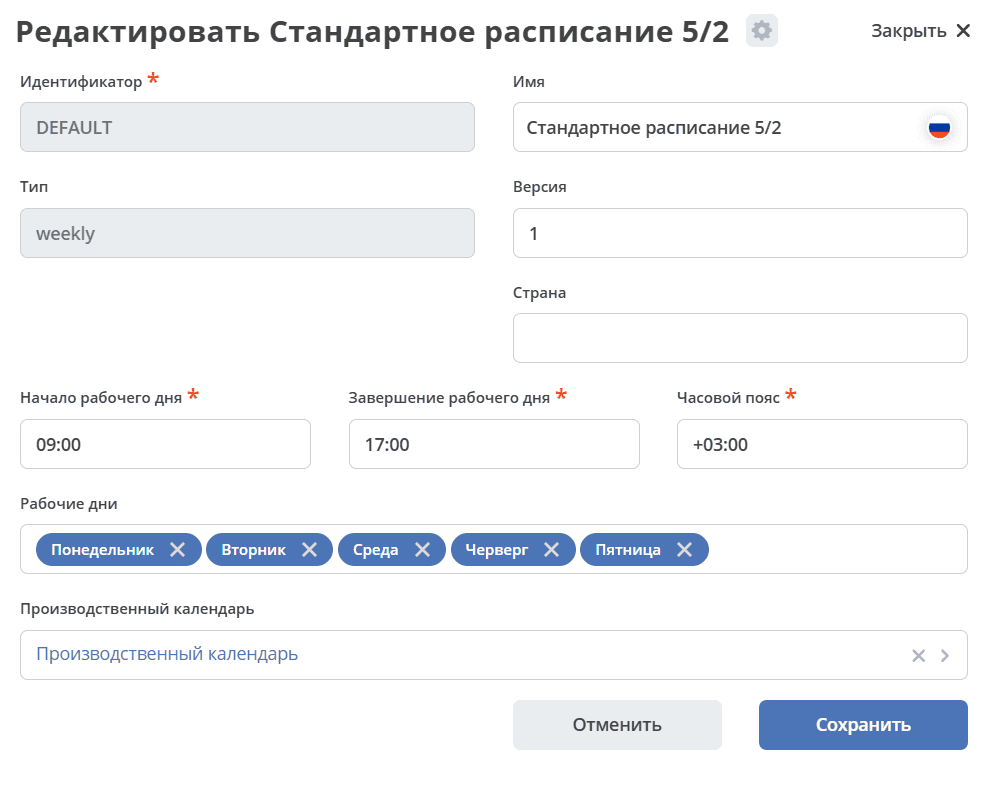

Schedule configuration for the weekly type:

ID	Type	Description
workingDayStart	LocalTime	Start of the working day
workingDayEnd	LocalTime	End of the working day
workingDayTimeZone	ZoneId	Working day time zone
workingDays	List<DayOfWeek>	List of working days
workingCalendar	EntityRef	Reference to the production calendar

Using WorkingScheduleService in Java/Kotlin Code 

Add the ru.citeck.ecos.wkgsch.lib.schedule.WorkingScheduleService service as a Spring bean.
Retrieve the working schedule using one of the lookup methods:

fun getScheduleById(id: String)
fun getScheduleForGroup(groupId: String)
fun getScheduleForUser(userName: String)
fun querySchedule(query: WorkingScheduleQuery)

Using the methods of the ru.citeck.ecos.wkgsch.lib.schedule.WorkingSchedule interface, perform date and/or time calculations based on the working schedule:

/**
* This interface stands as a contract for defining working schedules.
* It provides a range of functions that manipulate and interpret dates
* with respect to a working calendar/week - which may vary depending on the locale
* or the specific needs of a business.
*/
interface WorkingSchedule {

    /**
    * Adjusts a given date to its nearest following working day.
    * If the specified date is already a working day, no changes will be made.
    * Note: If the date has time and/or timeZone components, these will be preserved in the returned date.
    *
    * @param date any of date or datetime values Instant, LocalDate, LocalDateTime, OffsetDateTime, ZonedDateTime
    */
    fun <T : Temporal> correctDate(date: T): T

    /**
    * Adjusts a given date to its nearest following working day and then adds specified working days to it.
    * Note: If the date has time and/or timeZone components, these will be preserved in the returned date.
    *
    * @param date any of date or datetime values Instant, LocalDate, LocalDateTime, OffsetDateTime, ZonedDateTime
    */
    fun <T : Temporal> addWorkingDays(date: T, days: Int): T

    /**
    * Computes the number of working days between two dates.
    *
    * @param from the start date from which working days are counted. Accepted values: Instant, LocalDate, LocalDateTime, OffsetDateTime, ZonedDateTime
    * @param to the end date up to which working days are counted. Accepted values: Instant, LocalDate, LocalDateTime, OffsetDateTime, ZonedDateTime
    */
    fun getWorkingDays(from: Temporal, to: Temporal): Int

    /**
    * Adds a specified working time to a certain date.
    *
    * @param date any of date or datetime values Instant, LocalDate, LocalDateTime, OffsetDateTime, ZonedDateTime
    */
    fun <T : Temporal> addWorkingTime(date: T, time: Duration): T

    /**
    * Get working time between two dates.
    *
    * @param from the start time from which working time are counted. Accepted values: Instant, LocalDateTime, OffsetDateTime, ZonedDateTime
    * @param to the end time up to which working time are counted. Accepted values: Instant, LocalDateTime, OffsetDateTime, ZonedDateTime
    */
    fun getWorkingTime(from: Temporal, to: Temporal): Duration
}

Records API in the Browser and in BPMN Processes 

Add Working Time 

In the browser

await Records.queryOne({
    sourceId: 'emodel/working-schedule-action',
    query: {
        type: 'add-working-time',
        config: {date: '2023-03-05T14:00:00', time: '10h'},
        query: {scheduleId: 'DEFAULT'}
    }
}, "data")

In a BPMN process

Records.query({
    sourceId: 'emodel/working-schedule-action',
    query: {
        type: 'add-working-time',
        config: {date: dl.toISOString(), time: '32h'},
        query: {scheduleId: 'DEFAULT'}
    }
}, 'data').records[0].data

Result:

'2023-03-07T11:00'

Add Working Days 

In the browser

await Records.queryOne({
    sourceId: 'emodel/working-schedule-action',
    query: {
        type: 'add-working-days',
        config: {date: '2023-03-05', days: 10},
        query: {scheduleId: 'DEFAULT'}
    }
}, "data")

In a BPMN process

Records.query({
    sourceId: 'emodel/working-schedule-action',
    query: {
        type: 'add-working-days',
        config: {date: '2023-03-05', days: 10},
        query: {scheduleId: 'DEFAULT'}
    }
}, 'data').records[0].data

Result:

'2023-03-21'

Calculate the Number of Working Days Between Two Dates 

In the browser

await Records.queryOne({
    sourceId: 'emodel/working-schedule-action',
    query: {
        type: 'get-working-days',
        config: {from: '2023-03-05', to: '2023-03-21'},
        query: {scheduleId: 'DEFAULT'}
    }
}, "data")

In a BPMN process

Records.query({
    sourceId: 'emodel/working-schedule-action',
    query: {
        type: 'get-working-days',
        config: {from: '2023-03-05', to: '2023-03-21'},
        query: {scheduleId: 'DEFAULT'}
    }
}, 'data').records[0].data

Result:

'11'

Calculate the Number of Working Days Between Two Dates with Time 

In the browser

await Records.queryOne({
    sourceId: 'emodel/working-schedule-action',
    query: {
        type: 'get-working-time',
        config: {from: '2023-03-05', to: '2023-03-21'},
        query: {}
    }
}, "data")

In a BPMN process

Records.query({
    sourceId: 'emodel/working-schedule-action',
    query: {
        type: 'get-working-time',
        config: {from: '2023-03-05', to: '2023-03-21'},
        query: {}
    }
}, 'data').records[0].data

Result:

'PT80H'

All requests have a query field that may contain the following fields:

ID	Type	Description
user	String	The user for whom the working schedule needs to be found. If no schedule is found for the user, DEFAULT is used.
group	String	The group for which the working schedule needs to be found. If no schedule is found for the group, DEFAULT is used.
scheduleId	String	The identifier of a specific working schedule. If set, user and group are ignored. Identifier examples: ‘DEFAULT’, “some-id”
