Webhooks

Webhook — an integration mechanism in which an external system sends an HTTP request to Citeck when a specific event occurs. Unlike polling, a webhook operates on a “push” basis: data is delivered immediately at the moment of the event, with no need to query it periodically.

Citeck supports incoming webhooks: an external system sends a POST request to a dedicated endpoint, Citeck verifies the token and publishes the event to the internal message bus. The event can then be processed by any subscriber — a BPMN process, a Camel DSL integration route, etc.

Typical use cases:

• an external CRM (e.g. Bitrix24) notifies Citeck about the creation of a new deal;

• a messenger or CI/CD system sends an event upon task completion;

• any third-party system initiates the launch of a business process in Citeck.

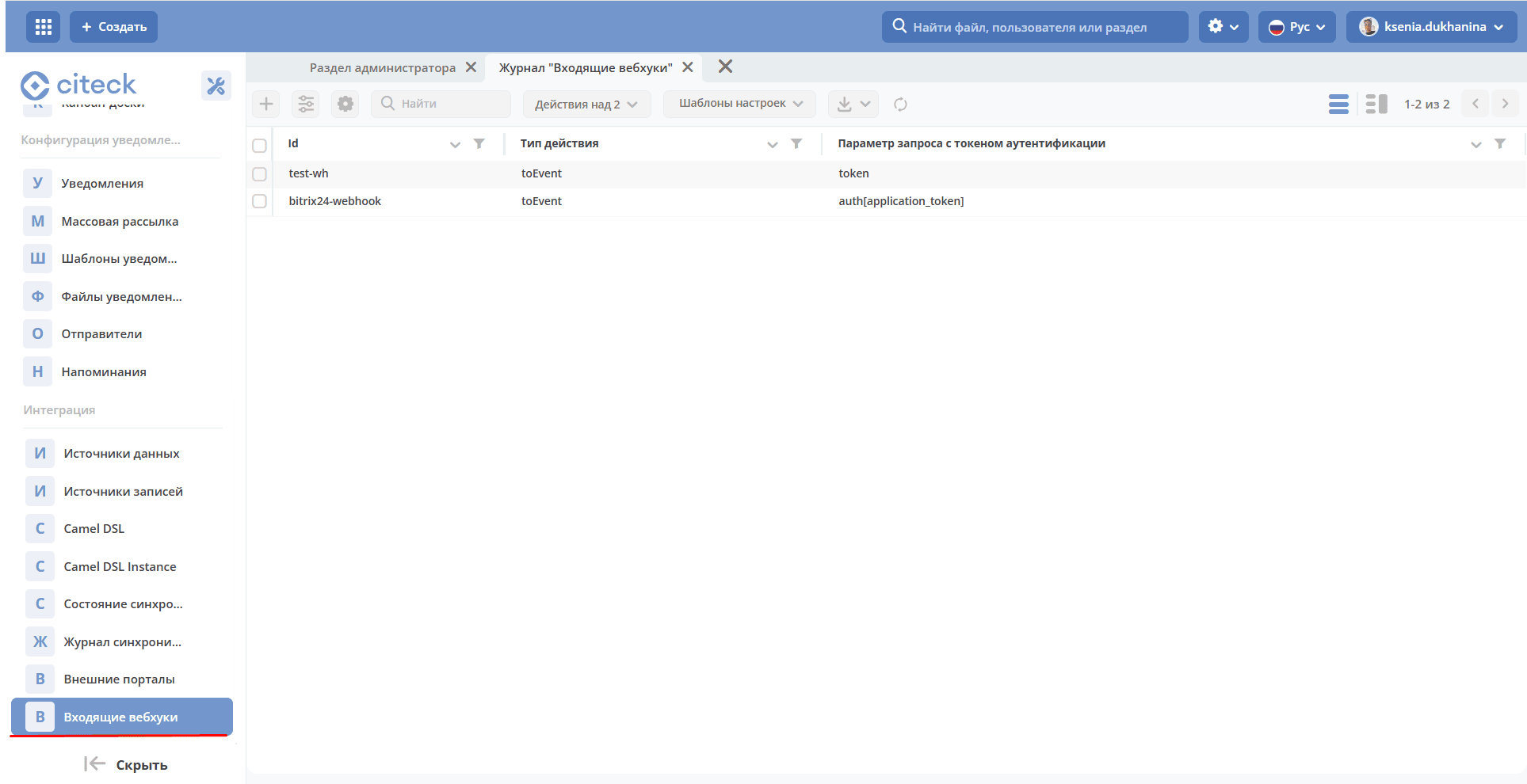

Settings are available in the “Incoming Webhooks” journal (Workspace “Admin Section” — Integration).

The journal is available at: v2/journals?journalId=in-webhook-journal&viewMode=table&ws=admin$workspace

Location of artifacts with this type: integration/in-webhook

Creation Form

Attributes (in-webhook):

Attribute	Type	Description
id	Text	Identifier used to form the webhook endpoint
token	ASSOC (secret)	Secret of type “Token”. Required to validate the request.
actionType	Text	Action type when processing the request
authParameter	Text	Request parameter in which the token is passed. If not specified, the default value token is used

Configuration Example:

---
id: bitrix24-webhook
token: emodel/secret@bitrix24-webhook-token
actionType: toEvent
authParameter: auth[application_token]

Once an incoming webhook is created, POST requests can be sent to the following address:

http://host/gateway/integrations/pub/webhook/${id}

where id is the identifier specified when creating the webhook.

The request must contain a body.

The authentication token must be passed in the parameter specified when creating the webhook.

For example:

http://host/gateway/integrations/pub/webhook/bitrix24-webhook?token=testAuthToken

Currently, one action type is available — “Transformation into Events”. When processing a webhook, the token is verified.

If verification succeeds, an ECOS Event is created in the standard queue ecos-events with the type in-webhook-request. The event contains the request data:

webhookId: String
params: Map<String, String>
body: String

For example:

{
  "params": {"event":"ONCRMDEALADD","auth[application_token]":"123","data[FIELDS][ID]":"9"},
  "body":"event=ONCRMDEALADD&auth%5Bapplication_token%5D=123&data%5BFIELDS%5D%5BID%5D=9",
  "webhookId":"bitrix24-webhook"
}

Only the Administrator and the System have read and edit access to webhooks.

Errors

The following errors may occur when sending a request to a webhook:

Code	Details	Comment
500	Invalid webhook id={wh_id}	Webhook with the specified id not found
500	Secret ${webhook.token} not found	The secret specified in the webhook was not found
500	Authentication token is not valid	The token parameter is missing from the request or the token is invalid
500	Not found action type ${webhook.actionType}	A non-existent action type was specified

Webhooks are used, for example, for synchronization with Bitrix24.
