Managing permissions in the DMN section

Citeck provides a flexible system for managing access permissions to DMN sections and decisions. Permissions are configured at the section level and are inherited by nested decisions, allowing you to differentiate access for different user groups — from system administrators to business process developers.

This article describes how to configure permissions for DMN sections, what permissions are available, and how permission inheritance works across the section tree.

Configuring permissions

Note

Only system administrators (users from the ECOS_ADMINISTRATORS group) can configure permissions for sections.

Permissions can be configured for each section separately. To do this, open the business process editor page:

https://{host}/admin?type=DMN

And next to the required section, click the actions button and select “Edit permissions”:

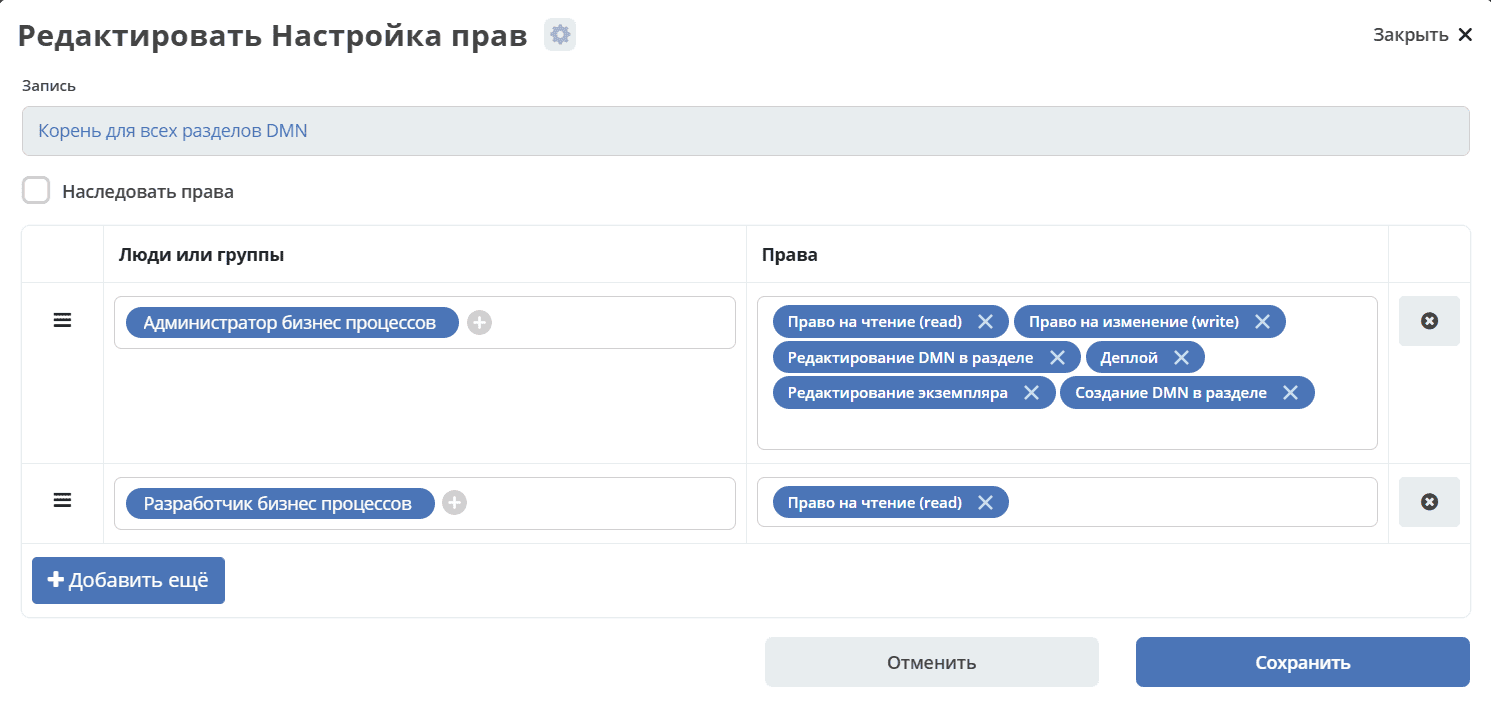

A settings window will appear:

In which you can configure permissions for groups and individuals, and enable or disable inheritance of the following permissions:

Type permissions

When creating and editing processes, it is often necessary to make changes to type configurations. To allow editing and creation for users without system administrator rights, you should configure permissions on the parent types as described in the article Configuring permissions for type descriptions

Example configuration options:

1. Configure permissions on the “base” type and give users access to create and edit any types.

2. Configure permissions on the “user-base” type and give users access to create and edit only business types.

3. Create a separate proxy type inherited from one of the standard types (case/data-list/document/doclib-file, etc.) and grant permissions only for it.

General rules for distributing permissions across sections

All sections belong to a tree with a single root — the root section. Permissions are inherited from the parent to child sections and from sections to nested processes.

If, when configuring permissions for a section, you remove the “Inherit permissions” flag, permissions will not be inherited.

Permissions on child entities are added to the permissions of the parent entities if permission inheritance is enabled.

Root section

The root section has the identifier ROOT and is used to configure default permissions for all other sections.

The root section is visible only to system administrators (users in the ECOS_ADMINISTRATORS group).

In the root section, you cannot create subsections via the actions next to this section. To create new sections in the root, use the “+” button above all sections:

Default permissions for the DMN root section

Group	Permissions
bp-administrator	read write dmn-def-deploy dmn-instance-edit dmn-section-create-dmn-def dmn-section-edit-dmn-def
bp-developer	read bpmn-process-def-deploy

Description of DMN permissions

Identifier	Name	Description
read	Read permission (read)	Determines whether the section and all DMN decisions in it are visible to the user.
write	Write permission (write)	Determines whether the section and all DMN decisions in it can be edited.
dmn-def-deploy	Deploy	Determines whether a DMN definition can be published to the engine.
dmn-instance-edit	Instance editing	Determines whether a DMN instance can be edited.
dmn-section-create-dmn-def	Creating DMN in the section	Determines whether DMN can be created in the section.
dmn-section-create-subsection	Creating subsections	Determines whether subsections can be created.
dmn-section-edit-dmn-def	Editing DMN in the section	Determines whether DMN decisions in the section can be edited.
