Senders 

Note

Added in version 2.9.0 of the ecos-notifications microservice

1. General Information 

Sender — a mechanism for routing and processing notifications before their delivery. Each notification is processed by exactly one sender.

Main purposes of the mechanism:

Routing — direct a notification to the appropriate delivery channel or external system

Blocking — prevent notification sending under certain conditions

Custom processing — intercept a notification and execute arbitrary logic (via a command sender)

Sender selection algorithm:

All active senders from the “Senders” journal with a notification type matching the notification’s type are taken.
Senders are sorted by the Order field (ascending).
For each sender, the application conditions are checked:
- Template list (if set) — the notification template must be in the list.
- Predicate (if set) — the condition is evaluated based on the notification template model attributes.
The first matching sender processes the notification and returns a status.
If the sender returned SKIPPED, proceed to the next one. If SENT or BLOCKED — processing is complete.

Note

Processing a notification by multiple senders simultaneously is not supported. One sender — one notification.

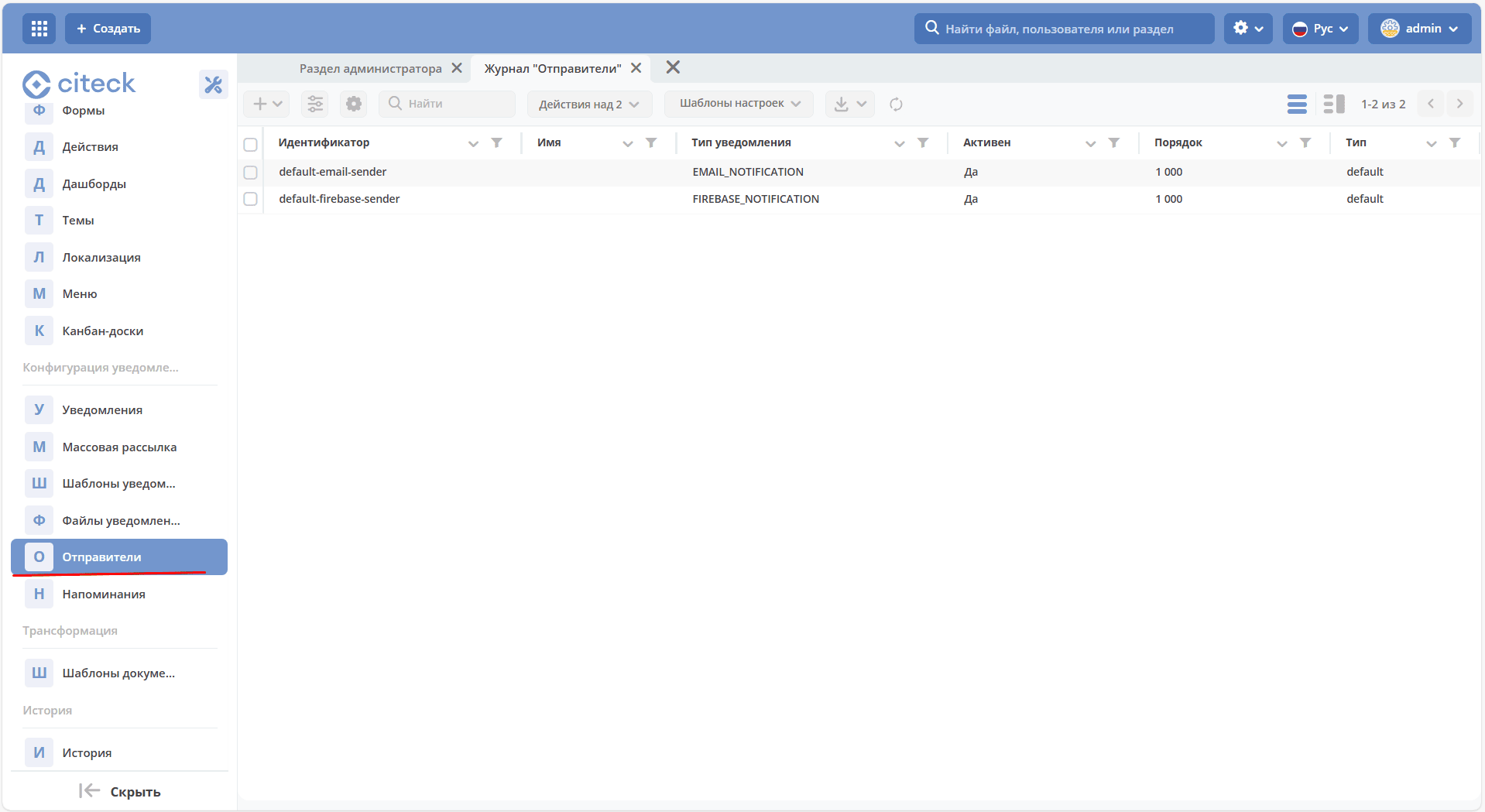

The “Senders” journal is available in the admin section, “Notification Configuration” menu:

2. Sender Fields 

Field	Description
Id	Unique sender identifier.
Name	Human-readable name.
Order	Numeric priority. Senders are iterated in ascending order. Built-in default senders have order 1000.
Notification type	The type for which the sender is applied: `EMAIL_NOTIFICATION` or `FIREBASE_NOTIFICATION`.
Templates	The list of templates for which the sender is applied. If the list is empty — the sender is applied to notifications for any template.
Conditions	Predicate in JSON format. Evaluated based on notification template model attributes. If not set — the sender has no additional restrictions. For more details on the predicate format, see Predicate Language.
Type	Sender type: `default` or `command`. Determines the behavior and configuration fields.
Configuration	A JSON object with parameters depending on the sender type.

Example blocking condition by process type (attribute value from the template model):

{
  "t": "eq",
  "a": "process-definition",
  "v": "flowable$confirm"
}

3. Sender Types 

3.1 Type `default`

A sender of type default has no configuration parameters — all sending logic is implemented inside the ecos-notifications microservice.

The “Senders” journal contains two system senders with order 1000 by default:

Id	Notification type	Description
`default-email-sender`	`EMAIL_NOTIFICATION`	Sending emails via the configured SMTP server.
`default-firebase-sender`	`FIREBASE_NOTIFICATION`	Sending push notifications via Firebase.

For the default-email-sender sender, optional email signing via an EDS certificate is available. For more details, see Sending Emails Signed with an Electronic Digital Signature (EDS).

A sender of type command delegates notification processing to an arbitrary microservice via the commands mechanism (ecos-commands). This allows implementing any logic: blocking, redirection, integration with external systems.

Configuration:

{
  "targetApp": "your-microservice-app-name",
  "commandType": "your-command-type"
}

Parameter	Description
`targetApp`	The name of the microservice application that will handle the command (e.g., `your-app`).
`commandType`	The string command type. Must match the `@CommandType` annotation in the handler.

Handler implementation in the microservice:

Step 1. Create a command class replicating the structure of SendNotificationCommand (ru.citeck.ecos.notifications.lib.command.SendNotificationCommand).

Annotate it with @CommandType:

@CommandType("your-command-type")
class YourNotificationCommand(
    val id: String,
    val record: EntityRef,
    val title: String,
    val body: String,
    val templateRef: EntityRef,
    val type: NotificationType,
    val lang: String,
    val recipients: Set<String>,
    val from: String,
    val cc: Set<String>,
    val bcc: Set<String>,
    val model: Map<String, Any>
)

Step 2. Implement a command handler returning NotificationSenderSendStatus (ru.citeck.ecos.notifications.lib.NotificationSenderSendStatus):

@Component
class YourNotificationCommandExecutor :
    CommandExecutor<YourNotificationCommand> {

    override fun execute(command: YourNotificationCommand): NotificationSenderSendStatus {
        // Ваша логика: отправить, заблокировать или пропустить
        return NotificationSenderSendStatus.SENT
    }
}

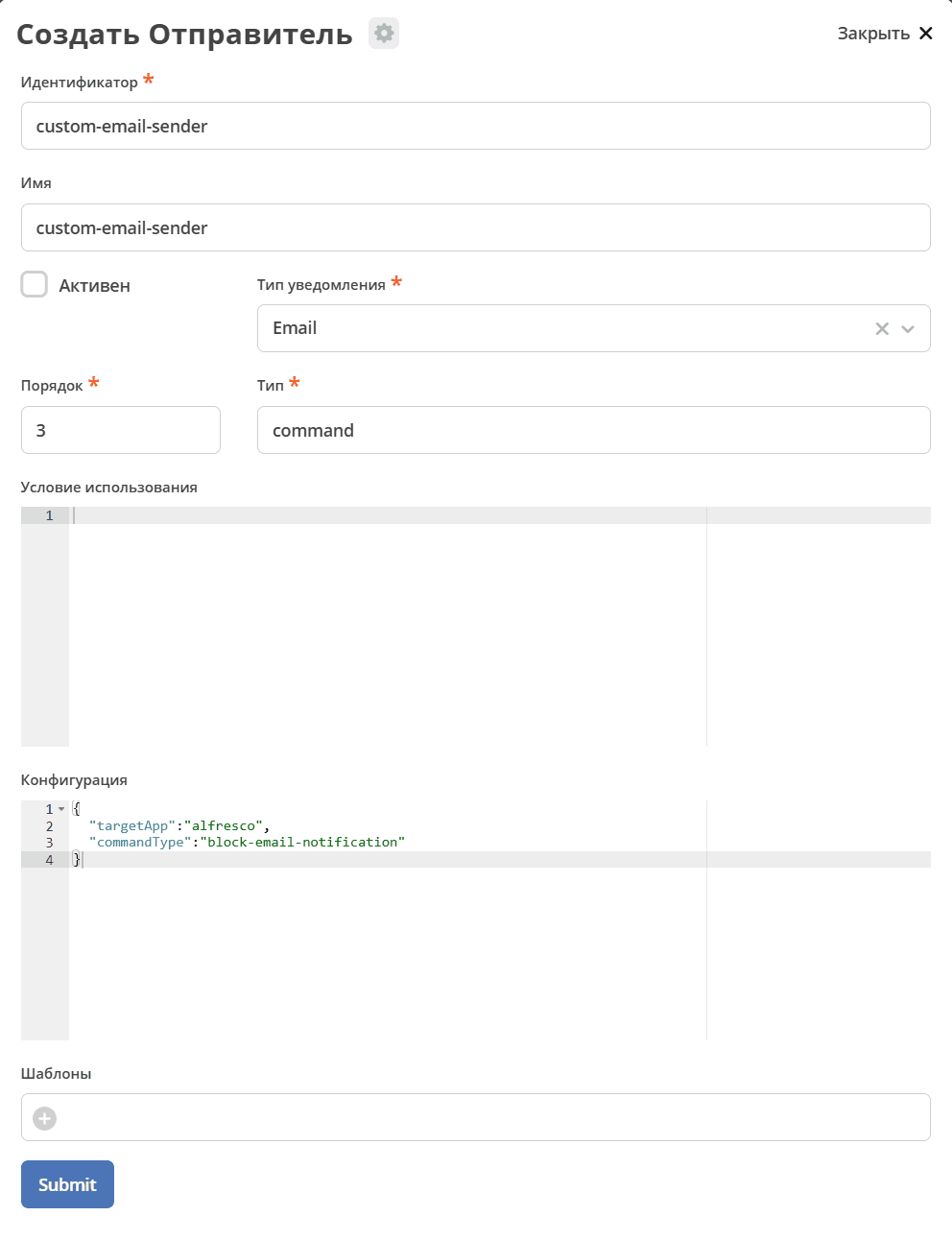

Step 3. Create a sender in the “Senders” journal with type command and the specified targetApp / commandType.

4. Notification Processing Statuses 

After receiving a notification, the sender must return one of the statuses from the ru.citeck.ecos.notifications.lib.NotificationSenderSendStatus enumeration:

Status	Description
`SENT`	Notification successfully sent. No further processing required. The status in the notification journal will change to `SENT`.
`BLOCKED`	Notification sending is blocked. No further processing required. The status in the notification journal will change to `BLOCKED`.
`SKIPPED`	The notification was not processed by the current sender. The platform will proceed to the next sender in priority order.

5. Typical Scenarios 

5.1 Conditional Notification Blocking 

The most common use case: prevent notification sending under certain conditions (e.g., for a specific process or template).

To implement:

Create a journal/registry of blocking conditions (e.g., as a separate data type in ecos-model).
Implement a command sender that checks notification parameters against the blocking conditions.
If the condition matches — return BLOCKED, otherwise — SKIPPED (so the notification is passed to the default sender).

override fun execute(command: YourNotificationCommand): NotificationSenderSendStatus {
    val isBlocked = blockingRulesService.matches(command)
    return if (isBlocked) NotificationSenderSendStatus.BLOCKED
           else NotificationSenderSendStatus.SKIPPED
}

5.2 Sending Notifications to an External System 

If the notification must be delivered not via email but to an external system (e.g., Telegram, a corporate messenger), implement a command sender with the appropriate commandType that performs an HTTP call or publishes to a queue. Return SENT so the email sender does not process the notification again.

5.3 Conditional Routing 

Multiple command senders with different conditions (predicates) and different commandType values allow routing notifications to different channels depending on model attributes. The order of senders determines priority: the first match processes the notification. Default senders with order 1000 serve as a fallback.
