Permission Management in BPMN Section

In Citeck, access to BPMN sections and process operations is managed through a flexible permission system. Permissions are assigned to user groups at the level of each section and are inherited by child sections and nested processes. This allows access to be differentiated: some users can only view processes, others can edit and publish them, and others can manage running process instances.

Permission Configuration

Note

Only system administrators (users from the ECOS_ADMINISTRATORS group) can configure permissions for sections.

Permissions can be configured for each section separately. To do this, open the business process editor page:

https://{host}/admin?type=BPM

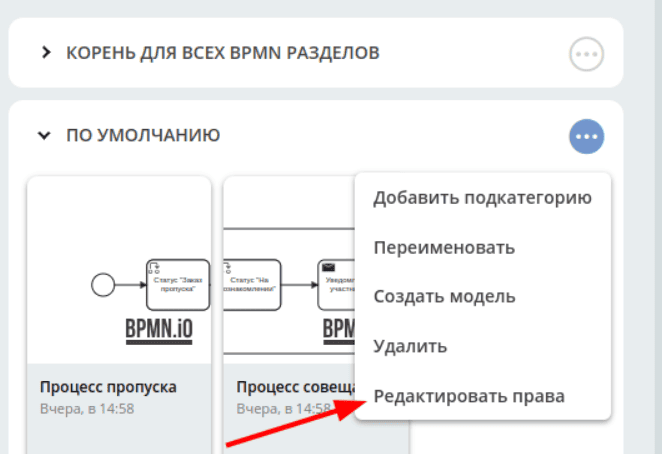

And next to the required section, click the actions button and select Edit permissions:

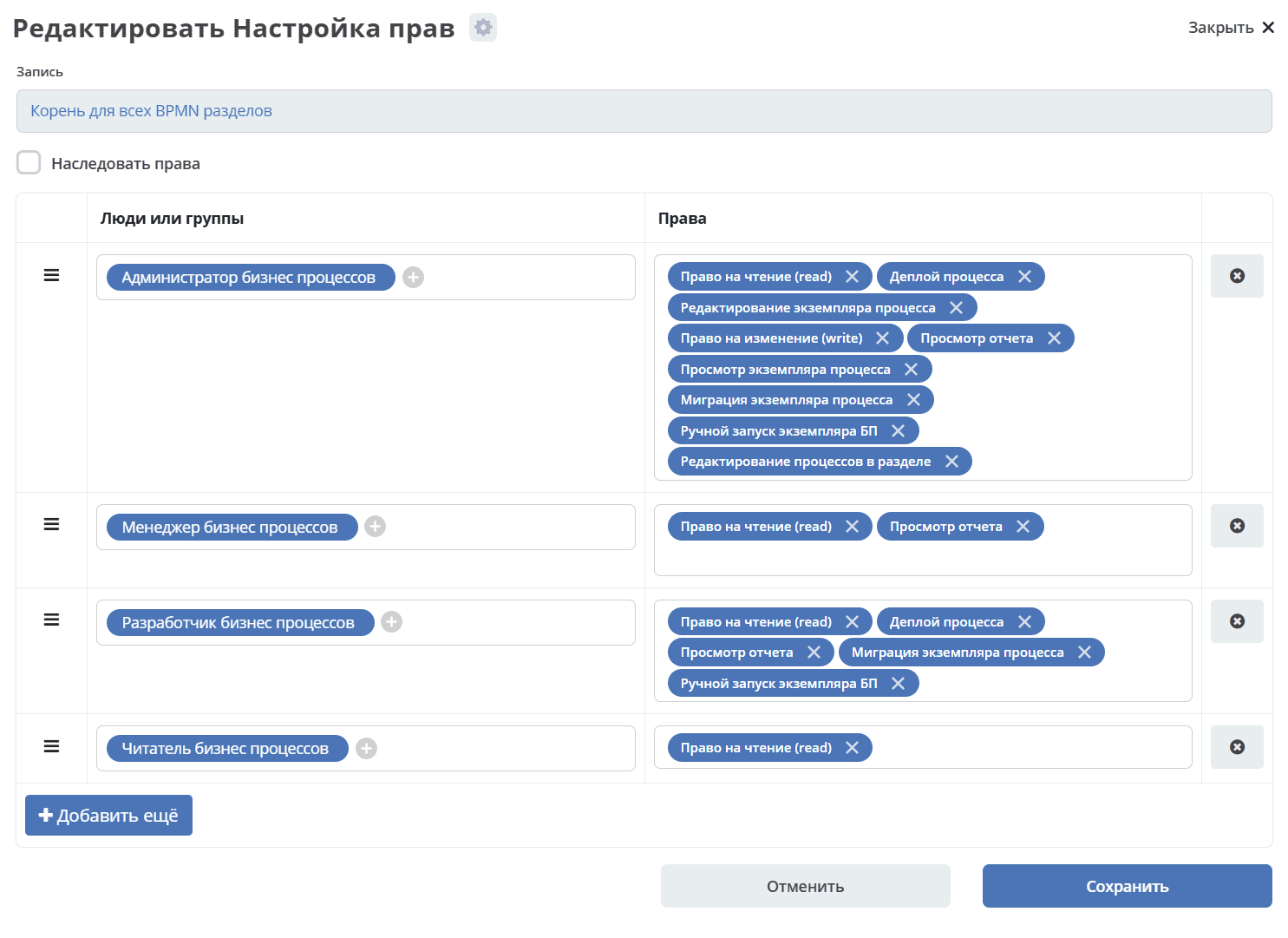

a configuration window is displayed:

where you can configure permissions for groups and individuals, enable or disable inheritance of the following permissions:

Type Permissions

When creating and editing processes, it is often necessary to make changes to type configurations. To allow editing and creation for users without system administrator rights, permissions should be configured on parent types as described in the article Configuring permissions for type descriptions

Example configuration options:

1. Configure permissions on the “base” type and grant users access to create and edit any types.

2. Configure permissions on the “user-base” type and grant users access to create and edit only business types.

3. Create a separate proxy type inherited from one of the standard types (case/data-list/document/doclib-file, etc.) and grant permissions only for it.

General Rules for Permission Distribution Across Sections

All sections belong to a tree with a single root - the root section. Permissions are inherited from parent to child sections and from sections to nested processes.

If the “Inherit permissions” flag is removed when configuring permissions for a section, then permissions will not be inherited.

Permissions on child entities are added to parent permissions if permission inheritance is enabled.

Root Section

The root section has the identifier ROOT and serves to configure default permissions for all other sections.

The root section is only visible to system administrators (users in the ECOS_ADMINISTRATORS group).

You cannot create subsections in the root section through actions next to this section. To create new sections at the root, use the “+” button above all sections:

Default permissions for BPMN root section

Group	Permissions
bp-administrator	read write bpmn-process-def-deploy bpmn-process-def-report-view bpmn-process-instance-run bpmn-process-instance-edit bpmn-process-instance-read bpmn-process-instance-migrate bpmn-section-edit-process-def
bp-manager	read bpmn-process-def-report-view
bp-developer	read bpmn-process-def-deploy bpmn-process-instance-run bpmn-process-def-report-view bpmn-process-instance-migrate
bp-viewer	read

BPMN Permissions Description

Identifier	Name	Description
read	Read permission (read)	Whether the section and all processes within it will be visible to the user.
write	Write permission (write)	Whether the section and processes within it can be edited
bpmn-section-create-process-def	Create processes in section	Whether new processes can be created in the section
bpmn-section-create-subsection	Create subsections	Whether subsections can be created within the section
bpmn-section-edit-process-def	Edit processes in section	Whether processes in the section can be edited
bpmn-process-def-deploy	Process deployment	Whether process description can be published to the BPMN engine
bpmn-process-def-report-view	View report	Whether process statistics can be viewed
bpmn-process-instance-read	View process instance	Whether process instances can be viewed
bpmn-process-instance-edit	Edit process instance	Whether process instances can be edited
bpmn-process-instance-migrate	Process instance migration	Whether process instances can be migrated
bpmn-process-instance-run	Manual business process instance start	Whether new process instances can be started manually
