Citeck BPMN General Overview

Citeck BPMN is a built-in tool for modeling and executing business processes based on the BPMN 2.0 standard. It allows you to visually describe the workflow logic — task routing, branching, timers, and integrations with external systems — and immediately run the created diagrams in a production environment without writing code.

The platform is based on the bpmn-js editor library and the camunda engine. The editor supports the full process lifecycle: creating and editing diagrams, publishing (deploying), monitoring running instances, and administration.

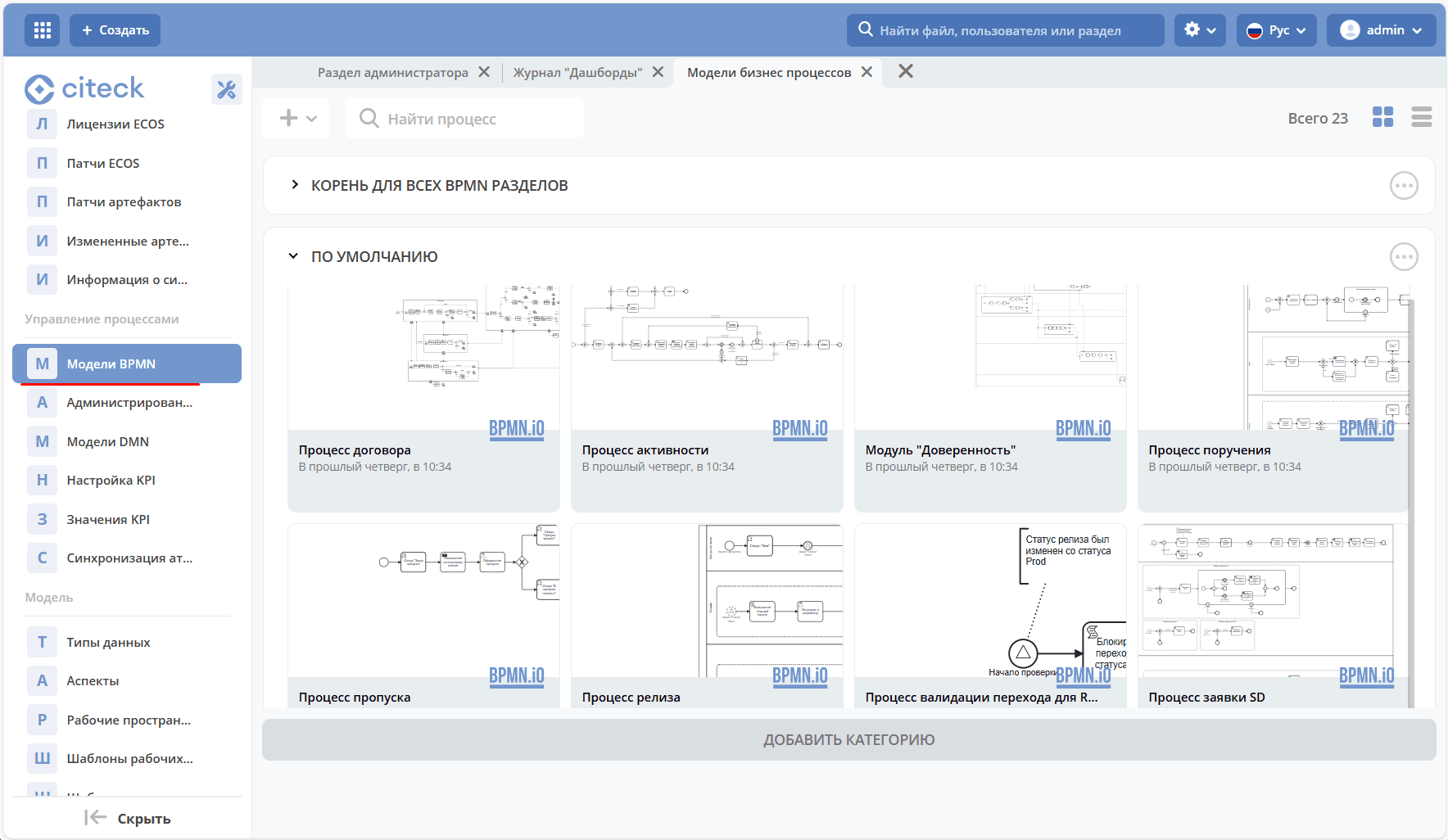

Navigate to the “BPMN Models” log (Administrator Section workspace - Process Management):

Process Description Permissions

Permission granting is delimited within business process categories/specific business processes. By default, the permissions for the specified roles are as follows:

Permission / Role / Group	Description	BP Administrator	BP Manager	BP Developer	BP Viewer
		bp-administrator	bp-manager	bp-developer	bp-viewer
Read permission (read)	View section and all processes within it
Write permission (write)	Edit section and processes within it
Edit processes in the section	Edit processes in the section
Process deployment	Publishing process models
View report	View process statistics
View process instance	View process instance in the “Business Process Administration” section
Edit process instance	Edit process instance in the “Business Process Administration” section
Process instance migration	Process instance migration in the “Business Process Administration” section
Manual process instance start	Manual process instance start in the “Business Process Administration” section

Roles are assigned to groups. To grant permissions to a user, they must be added to the corresponding group.

Permissions can also be configured for specific users on specific sections

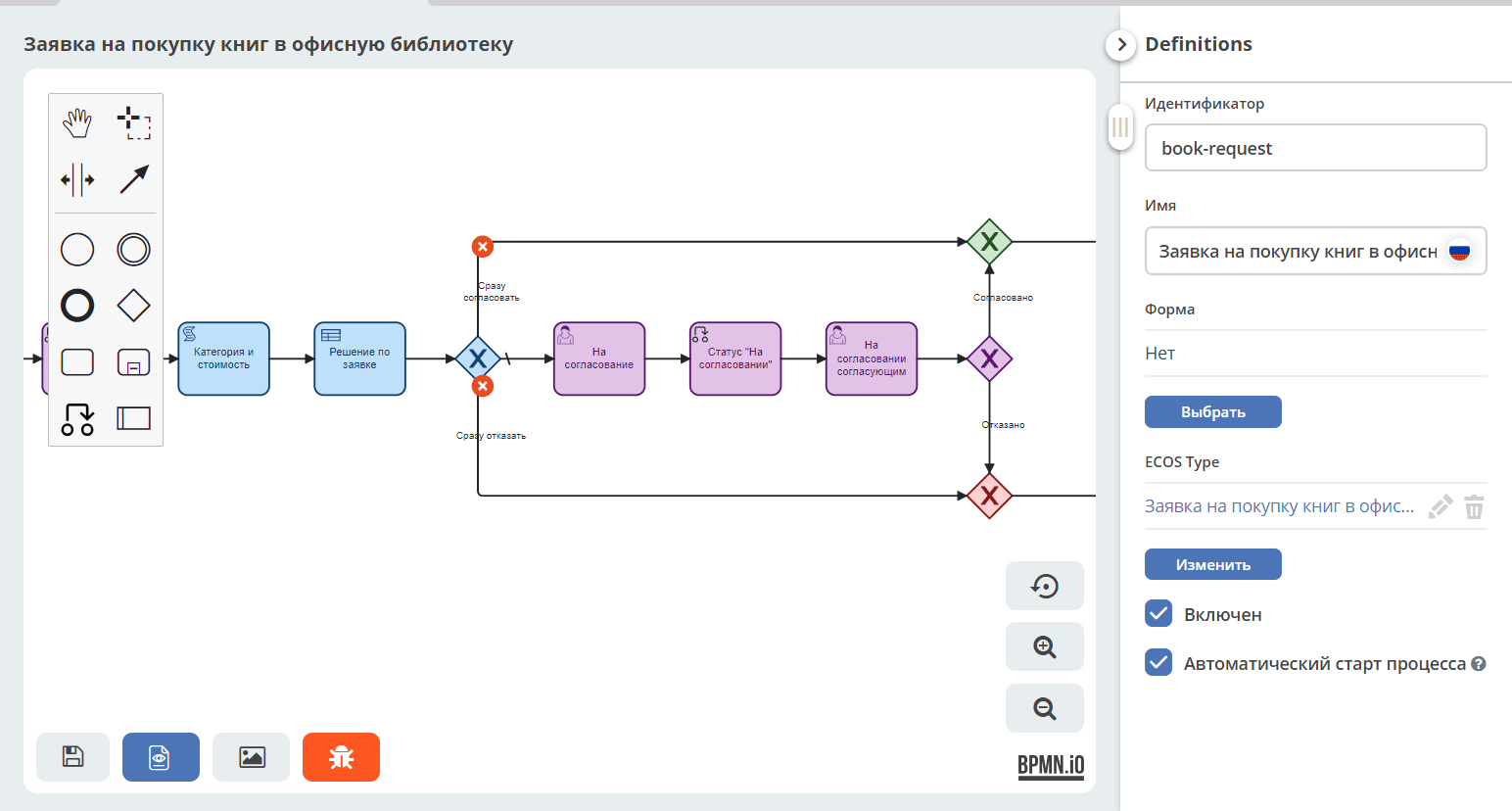

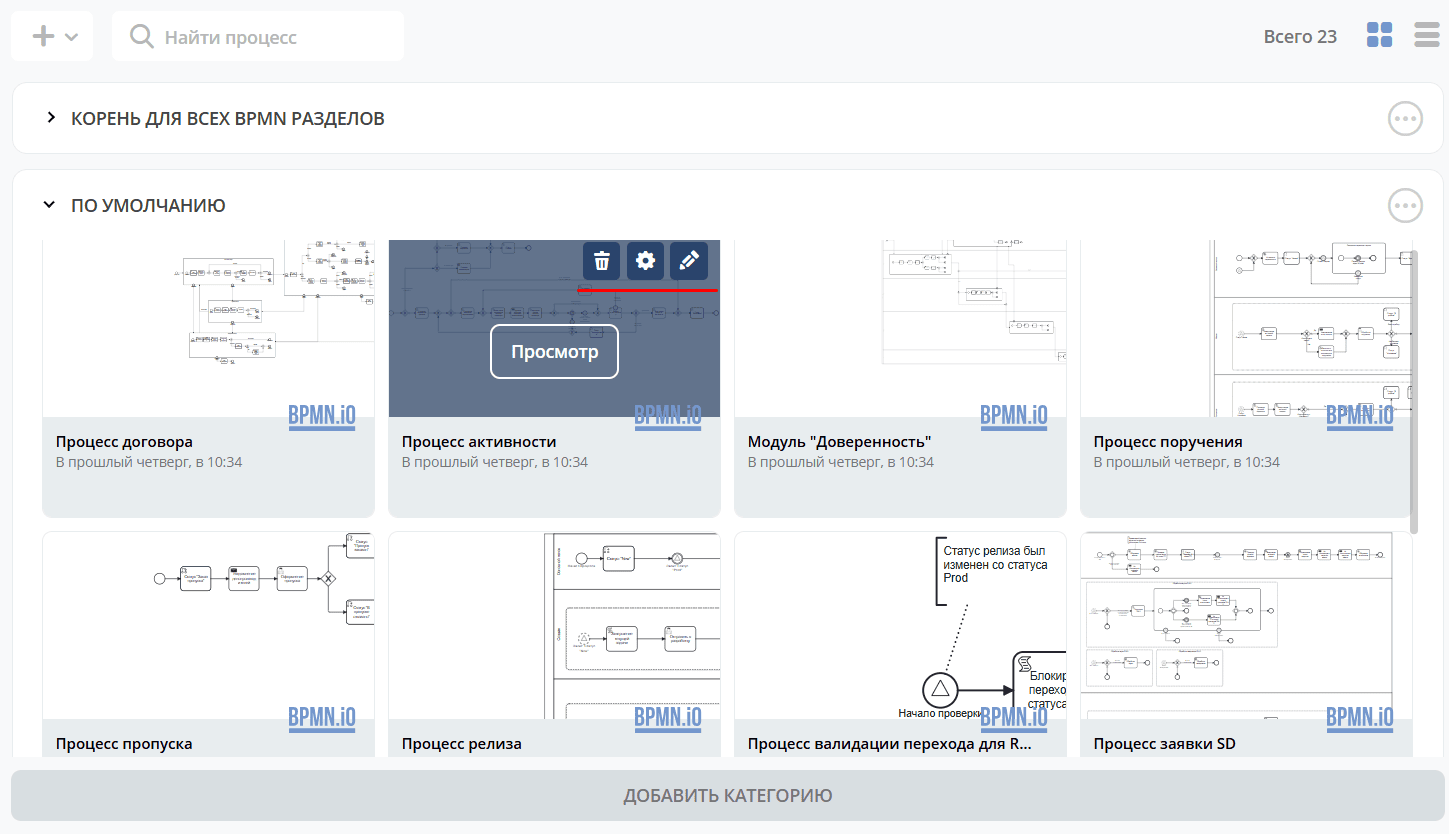

1. The “Modeling” section with DMN/BPMN editors is available to users with Read permission (read)

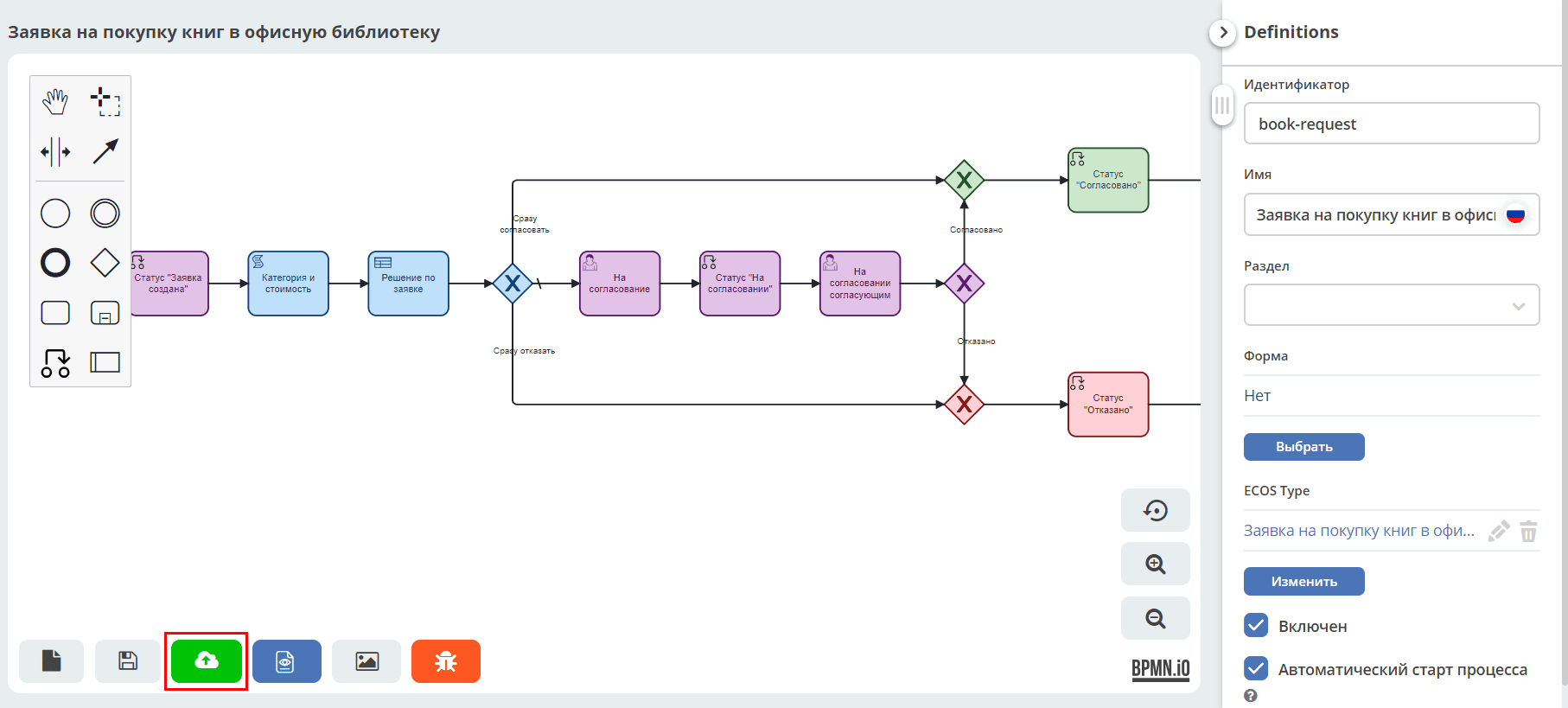

2. In DMN/BPMN editors, model publishing is only available to users with Process deployment permission

Deployment permission can be checked with the query permissions._has.deploy?bool

For example:

Records.get('eproc/bpmn-def@your-process').load("permissions._has.deploy?bool", true).then(res => console.log(res))

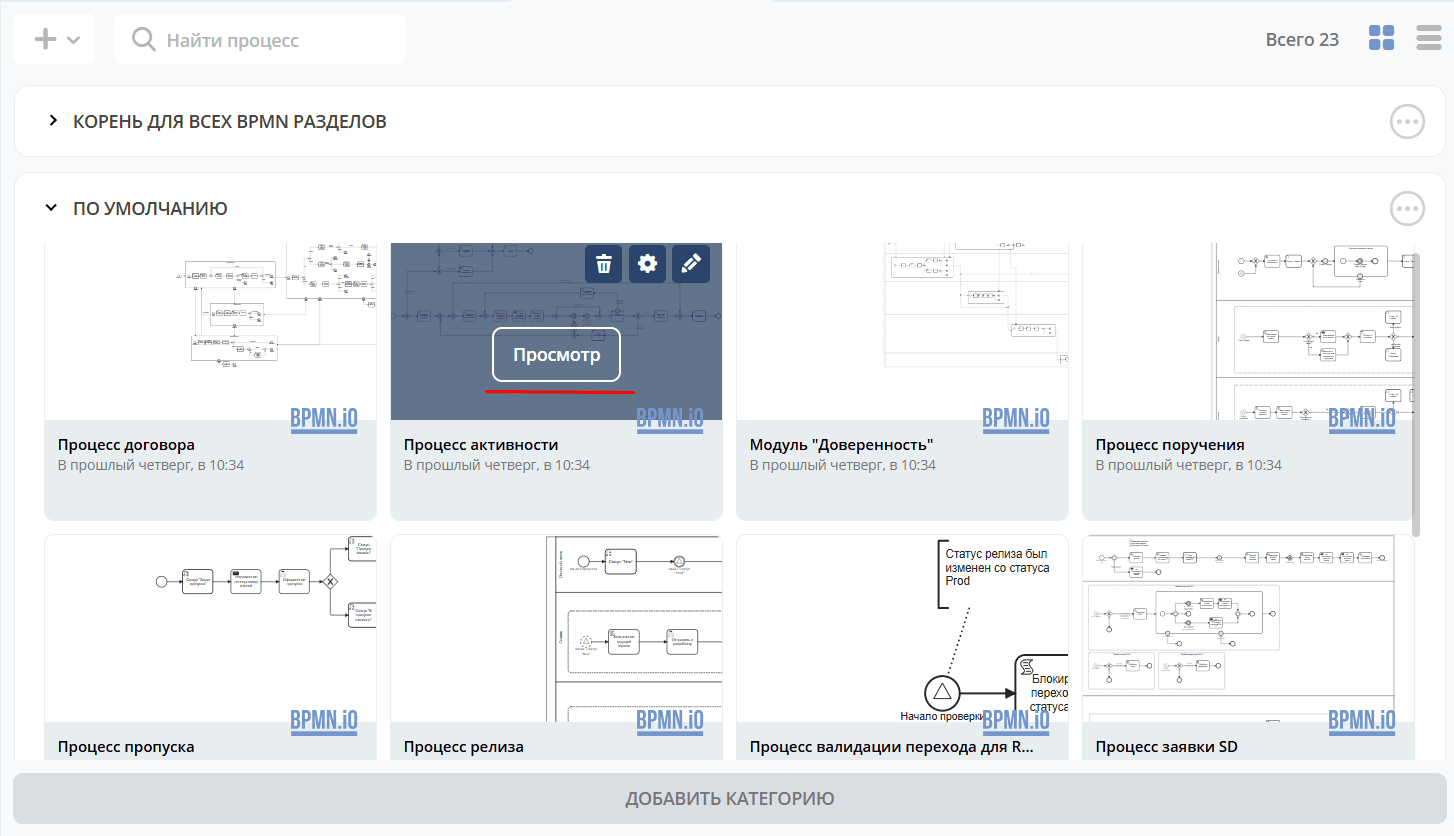

3. Added capability to view BP diagrams for users with Read permission (read)

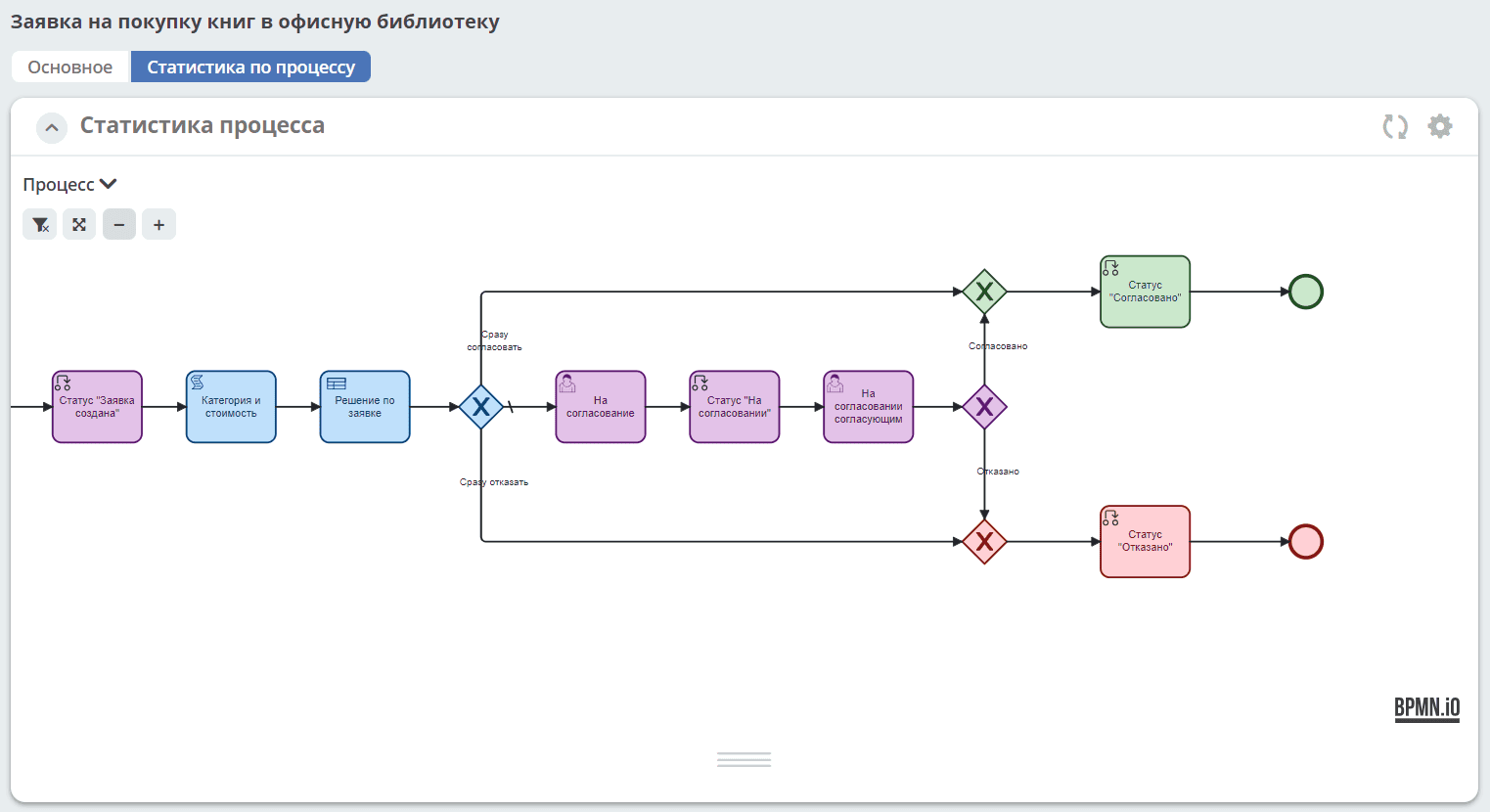

4. Added report viewing for roles with View report permission. Reporting refers to the “Process Statistics” widget.

Report viewing permission can be checked with the query permissions._has.viewReports?bool

For example:

Records.get('eproc/bpmn-def@you-process').load("permissions._has.viewReports?bool", true).then(res => console.log(res))

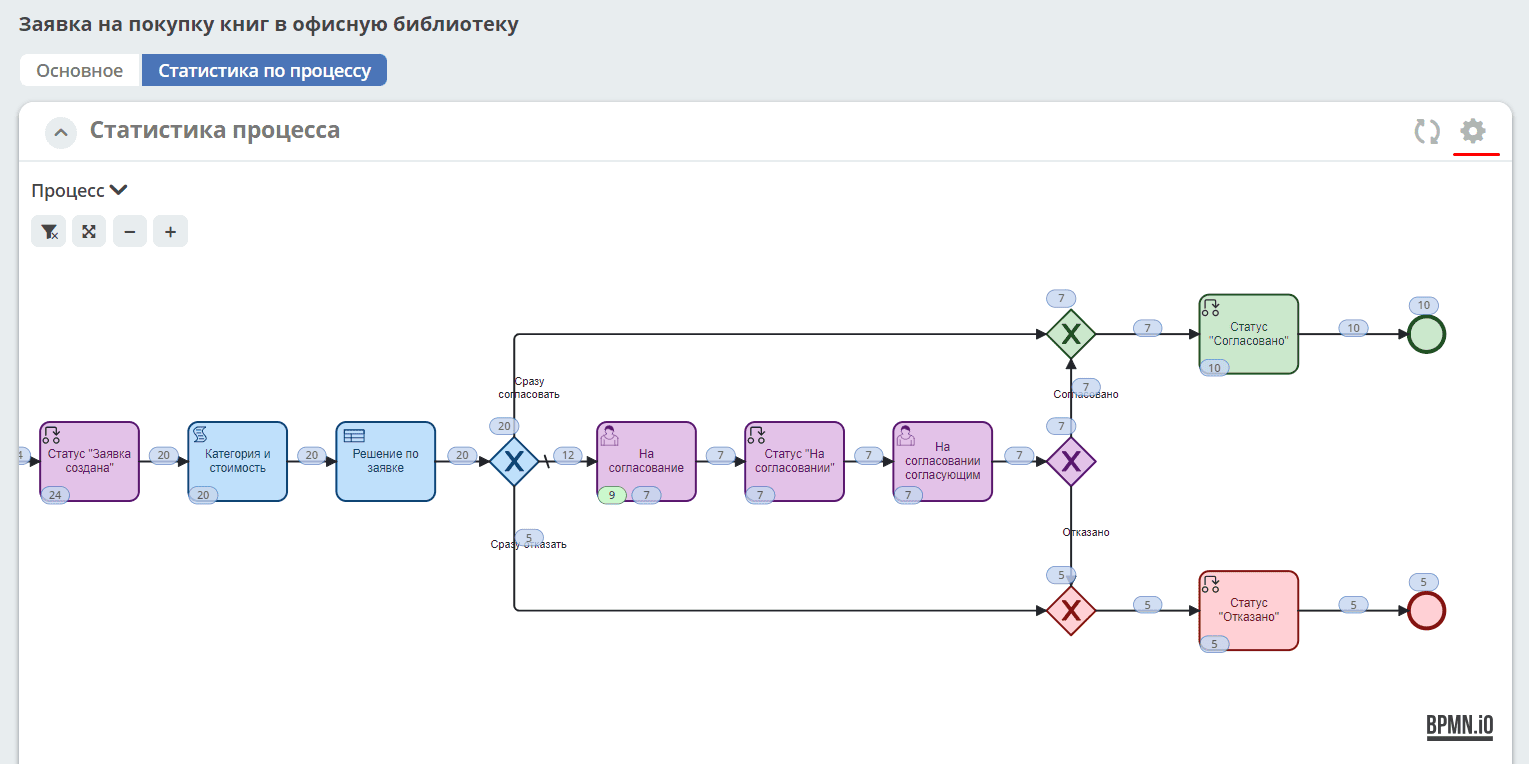

View configuration is only available to users from the ECOS administrators group.

Details about the “Process Statistics” widget
