Editors

Editors define the appearance and behavior of a field during inline editing of a journal record and during filtering. Each attribute type has its own editor, which is set in the journal column configuration in the editor field.

Important

formatter and editor in the column configuration are independent fields:

• formatter controls cell rendering in the table;

• editor controls the inline editor and the filter control in the column header.

If a column does not have an editor set, the filter value input will be empty — even if formatter is correctly configured. The most common case is columns of type ASSOC: the assoc formatter only handles display, while the filter requires an editor (typically type: journal).

Column type to editor mapping:

Column type (type)	Editor (editor.type)
ASSOC	journal
PERSON / AUTHORITY_GROUP / AUTHORITY	orgstruct
TEXT / MLTEXT	text
NUMBER / INT / LONG / FLOAT / DOUBLE	number
DATE	date
DATETIME	datetime
BOOLEAN	boolean

Note

Computed attributes can be used in editors.

Settings

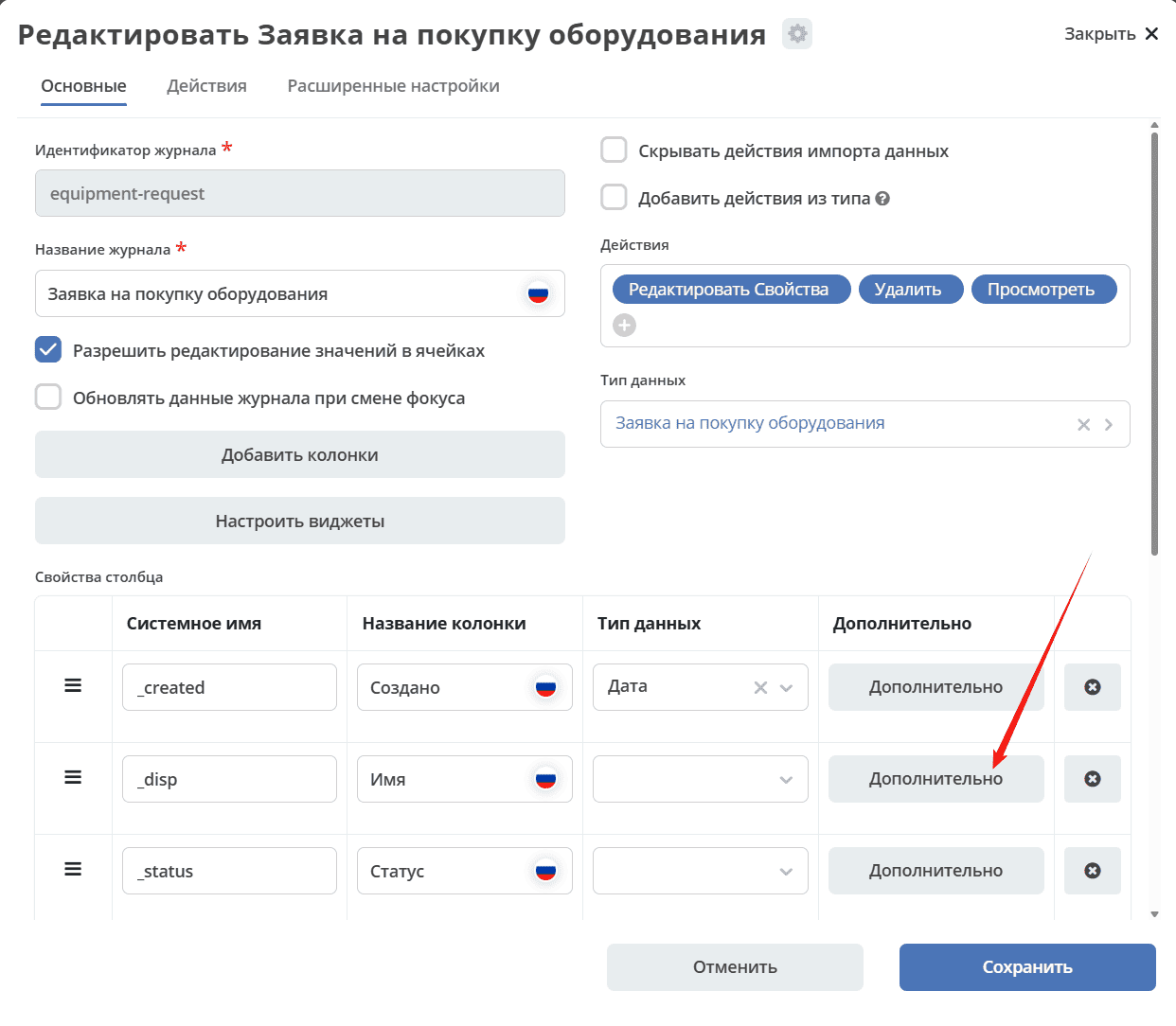

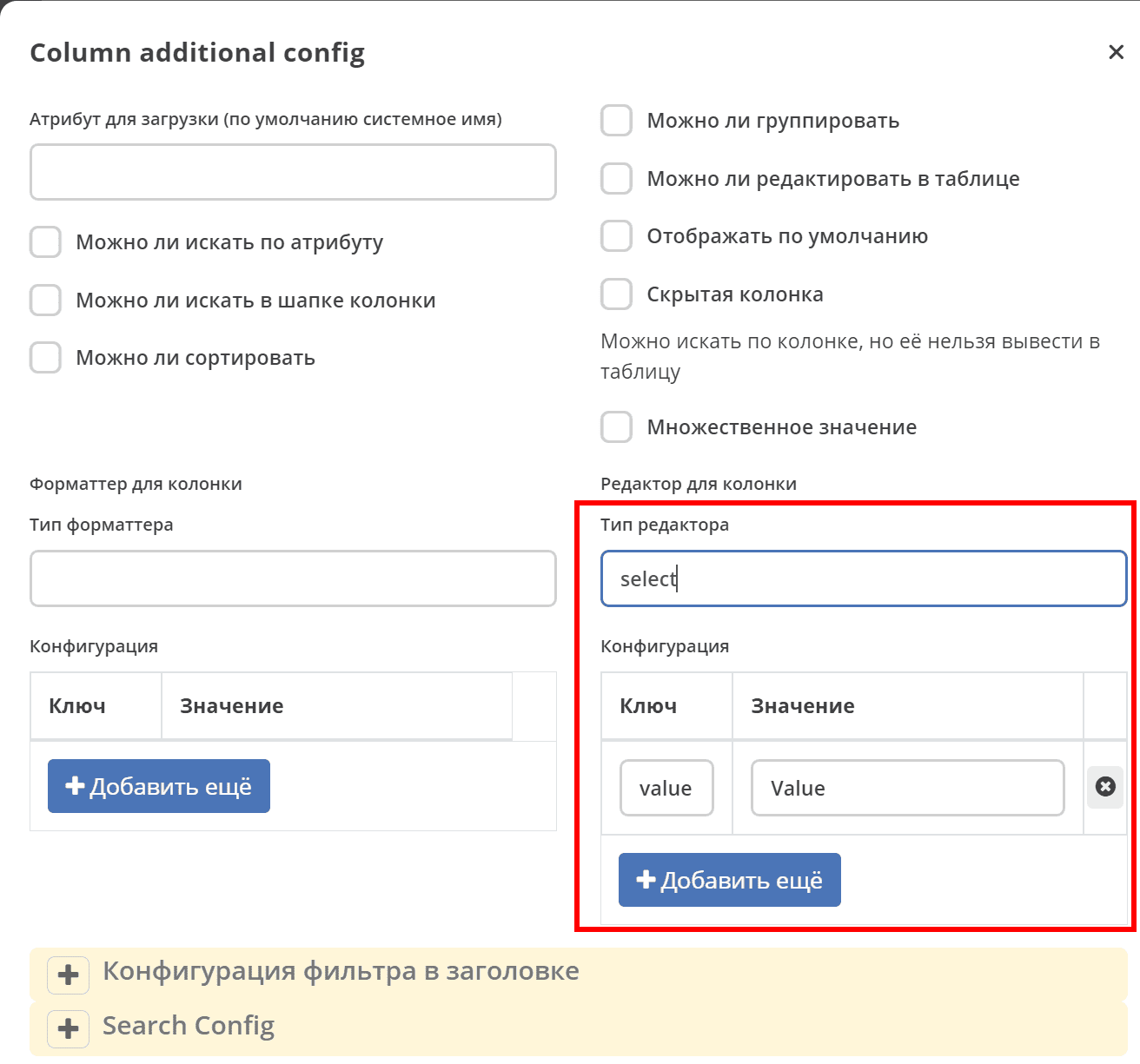

Go to the administration section > Journals > find the required journal > Edit action. Navigate to Advanced.

Types

BooleanEditor

Type: boolean

Key	Value	Default
mode	Editor mode select: checkbox:	select

DateEditor

Type: date

DateTimeEditor

Type: datetime

JournalEditor

Type: journal

Used for columns of type ASSOC — handles both inline editing of the association value and the filter control in the column header. There is no separate editor with type assoc: for any association, editor.type: journal must be specified.

Key	Value	Default
journalId	The identifier of the journal from which the value will be selected. Typically — the journal associated with the target association type.

Example of a complete ASSOC column configuration with formatter and editor:

- id: urgencyClass
  name:
    ru: Класс срочности
  type: ASSOC
  multiple: true
  searchable: true
  formatter:
    type: assoc
    config:
      sourceId: emodel/ecos-urgency-class
  editor:
    type: journal
    config:
      journalId: ecos-urgency-class

Here formatter defines how the cell is rendered, and editor defines how the filter in the header and the inline value editor look. Without the editor block, the filter will remain empty.

NumberEditor

Type: number

OrgstructEditor

Type: orgstruct

Configuration:

Key	Value	Default
allowedAuthorityTypes	options string: GROUP, USER
multiple	multiple selection boolean	false

SelectEditor

Type: select

Configuration:

Static options can be defined, or options can be retrieved using the recordRef + attribute of a record and the optionsAtt parameter.

Key	Value	Default
options	JSON options string e.g. [{"label":"priority.high","value":1}, {"label":"priority.low","value":3}, {"label":"priority.medium","value":2}]
optionsAtt	e.g. _edge.${attribute}.options{value:?str,label:?disp}	_edge.${attribute}.options{value:?str,label:?disp}

TextEditor

Type: text
