Creating a new journal

A Journal in Citeck is a tabular representation of records of a specific data type, providing search, filtering, sorting, grouping, and action capabilities for objects.

Journal configurations are available in the Administrator Section workspace → UI Configuration → Journals. To create a new journal, click + and select Create journal configuration.

The new journal creation form consists of the following tabs:

Main — main journal characteristics.

Actions — configuration of actions available for the journal.

Advanced settings — additional journal settings.

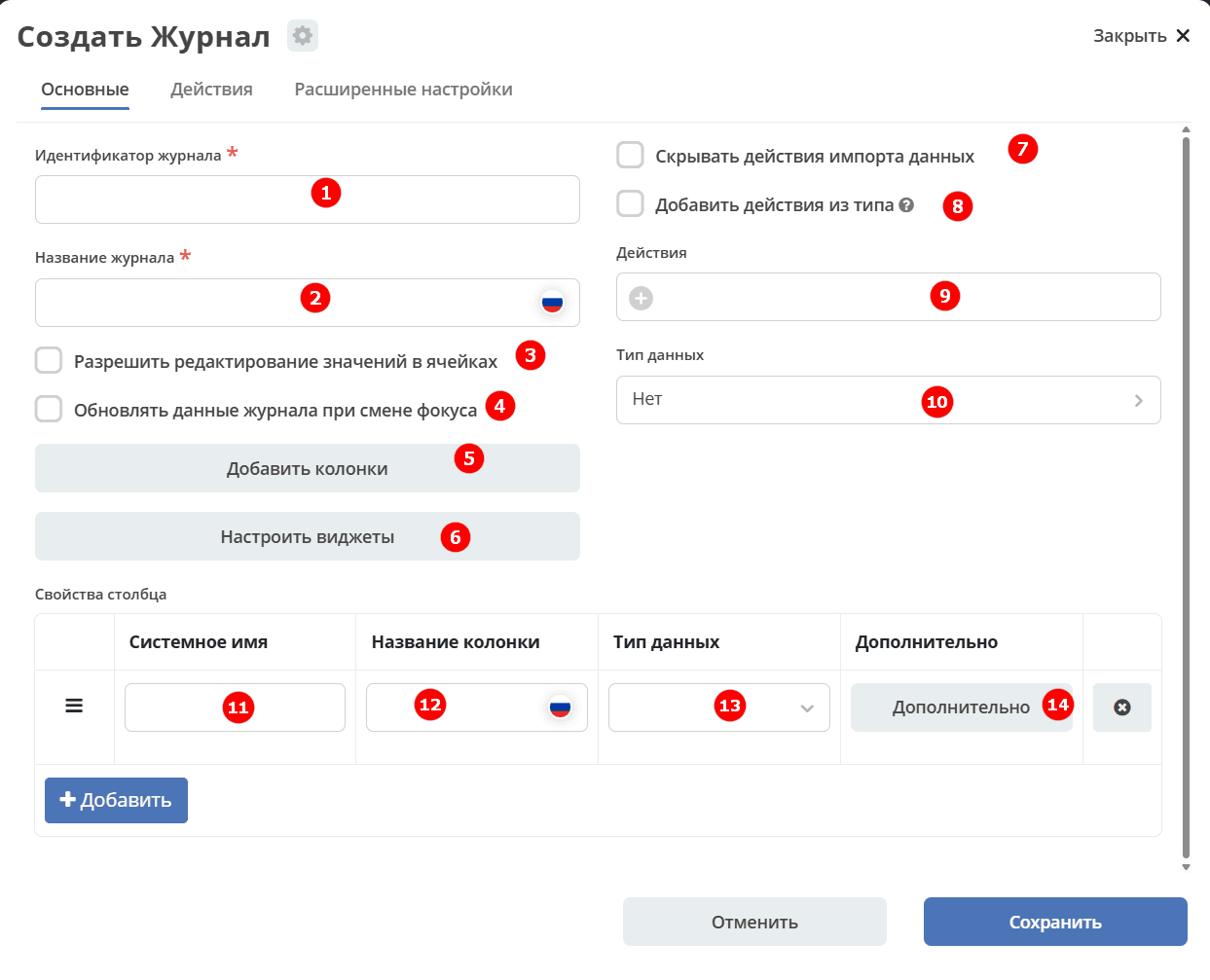

Main

No.	Name	Description	Example
1	Journal ID (required)	Unique journal identifier	test_journal (kebab_case)
2	Journal name	Journal name that will be displayed	Test journal
3	Allow editing values in cells	Inline editing capability — editing data directly in the cell.	Flag
4	Refresh journal data on focus change	Journal data will be refreshed when the user changes focus. For example, to update the current tasks journal when completing a task.
5	Add columns	[to be specified]
6	Configure widgets	Configuring preview widgets for card data
7	Hide data import actions	Hide the data import button
8	Add actions from type	Adds actions that were added in the data type. Three values are possible: — empty (null) — if actions and actionsDef are empty, add actions from type; — true — always add actions from type; — false — never add from type.	empty (null) / true / false
9	Actions	Select from the list actions that will be available for journal objects (inline actions in the row)	selected from the suggested list
10	Data type	Select a previously created data type from the list. Not required to select — the following relationships are sufficient: type → journal type → form Reverse relationship is only needed when there are multiple forms or multiple journals for one type.	selected from the suggested list
11	System name	Id of model attribute	testAttribute
12	Column name	Column name that will be displayed	Test attribute
13	Data type	Field type. Supported types	selected from the suggested list
14	Additional	Additional column settings. See below

Columns can be moved and deleted.

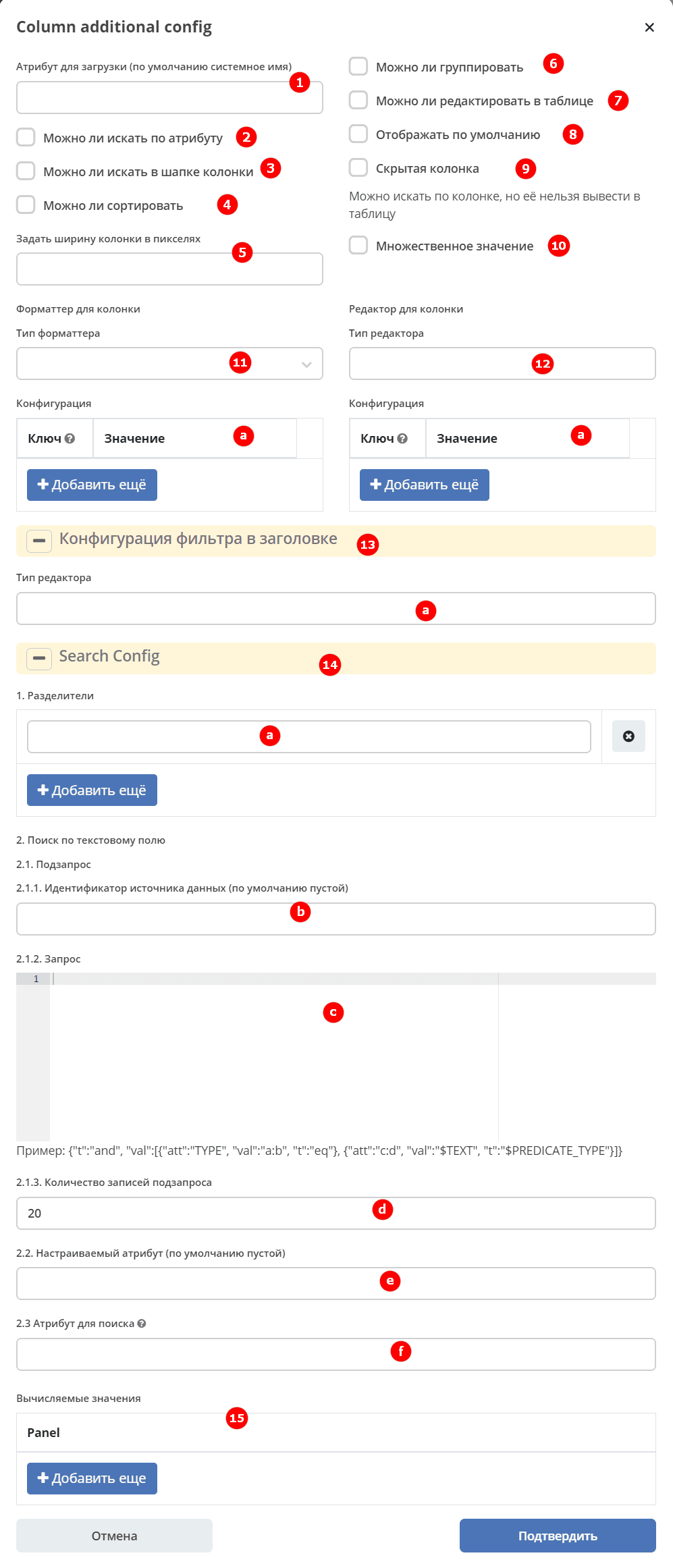

Additional column settings

No.	Name	Description
1	Attribute for loading (default: system name)	Using expressions in journals
2	Search by attribute allowed	Allow search by attribute
3	Search in column header allowed	Allow search in column header
4	Sorting allowed	Allow sorting by column
5	Set column width in pixels	Preset column width in pixels. Column width changes made with slider are saved and take priority.
6	Grouping allowed	Allow grouping by column
7	Editing in table allowed	Inline editing by clicking on the value. Depending on the data type, different editing options are available. [to be specified]
8	Display by default	Allow column to be displayed by default
9	Hidden column	Search by column is allowed, but it cannot be displayed in the table
10	Multiple values	How many values can be in a cell: — false — 0–1; — true — any number.
11	Formatter for column	Specify formatter see Formatters
a	Formatter configuration	Key and value if needed
12	Editor for column	Specify editor see Editors
a	Editor configuration	Key and value if needed
13	Filter configuration in header	[to be specified]
a	Editor type	Specify editor see Editors
14	Search config	Search configuration
a	Delimiters	Ability to set and configure delimiter for array values
b	Data source identifier (empty by default)	[to be specified]
c	Query	Query body
d	Number of subquery records	Displayed number of subquery records
e	Custom attribute (empty by default)	[to be specified]
f	Attribute for search	Parameter is used in the interface when building a query with column filter (searchAttribute). When building a query with column filter and searchAttribute present in column configuration, the search attribute should be replaced with the value from searchAttribute. See details.
15	Panel	[to be specified]

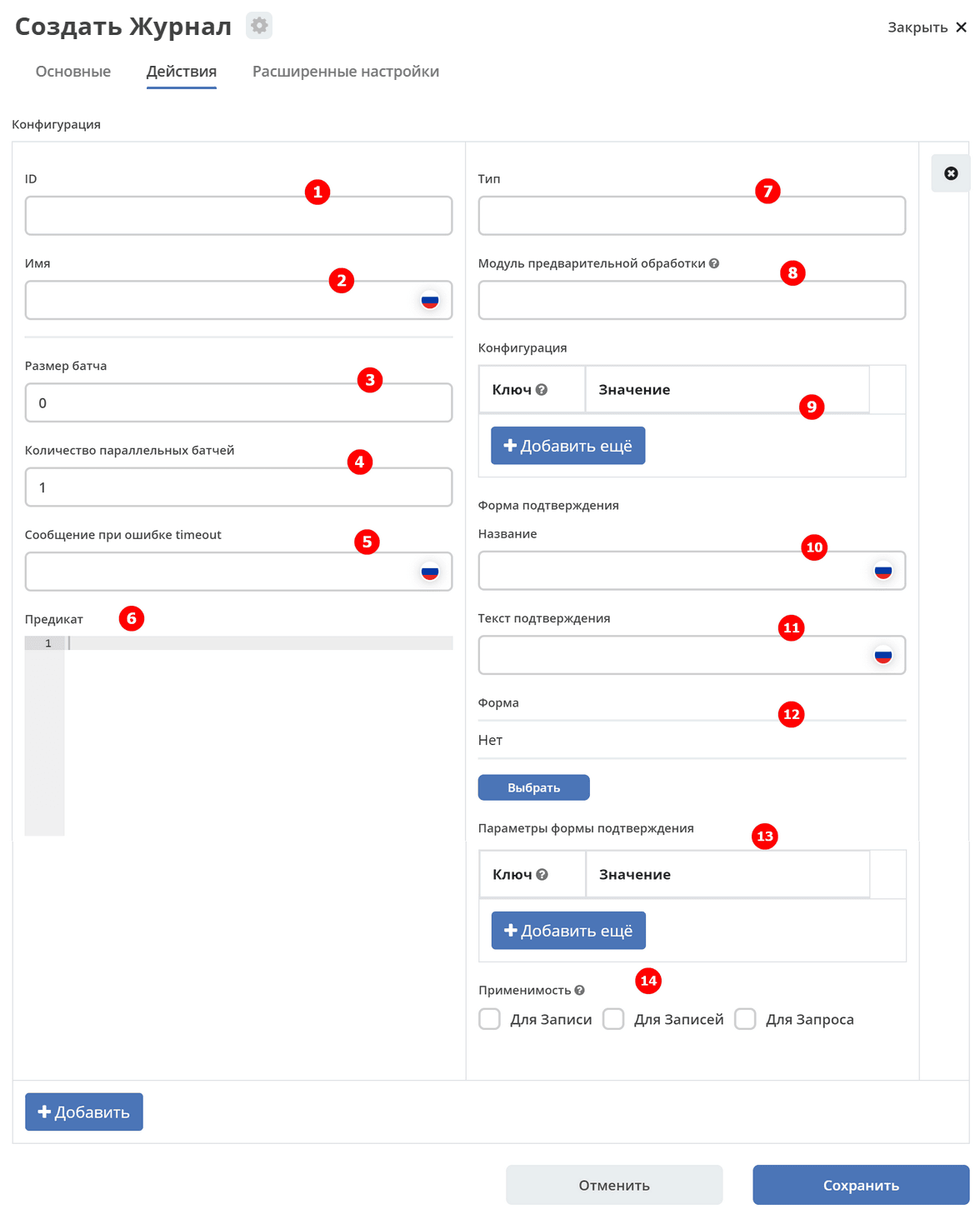

Actions

No.	Name	Description
1	ID	Unique identifier
2	Name	Action name
3	Batch size	Query size
4	Number of parallel batches	Specify how many queries are launched simultaneously
5	Timeout error message	Enter error message text
6	Predicate	Specify predicate. See details Predicate language
7	Type	Specify type (actions)
8	Preprocessing module	Specify link to module containing JS code
9	Configuration	Key and value if needed
10	Confirmation form name	Form name
11	Confirmation text	Confirmation text
12	Form	Form that opens when action is selected. Form is selected from the suggested list
13	Confirmation form parameters	Key and value if needed
14	Applicability	Apply for record, records, search query. See details below.

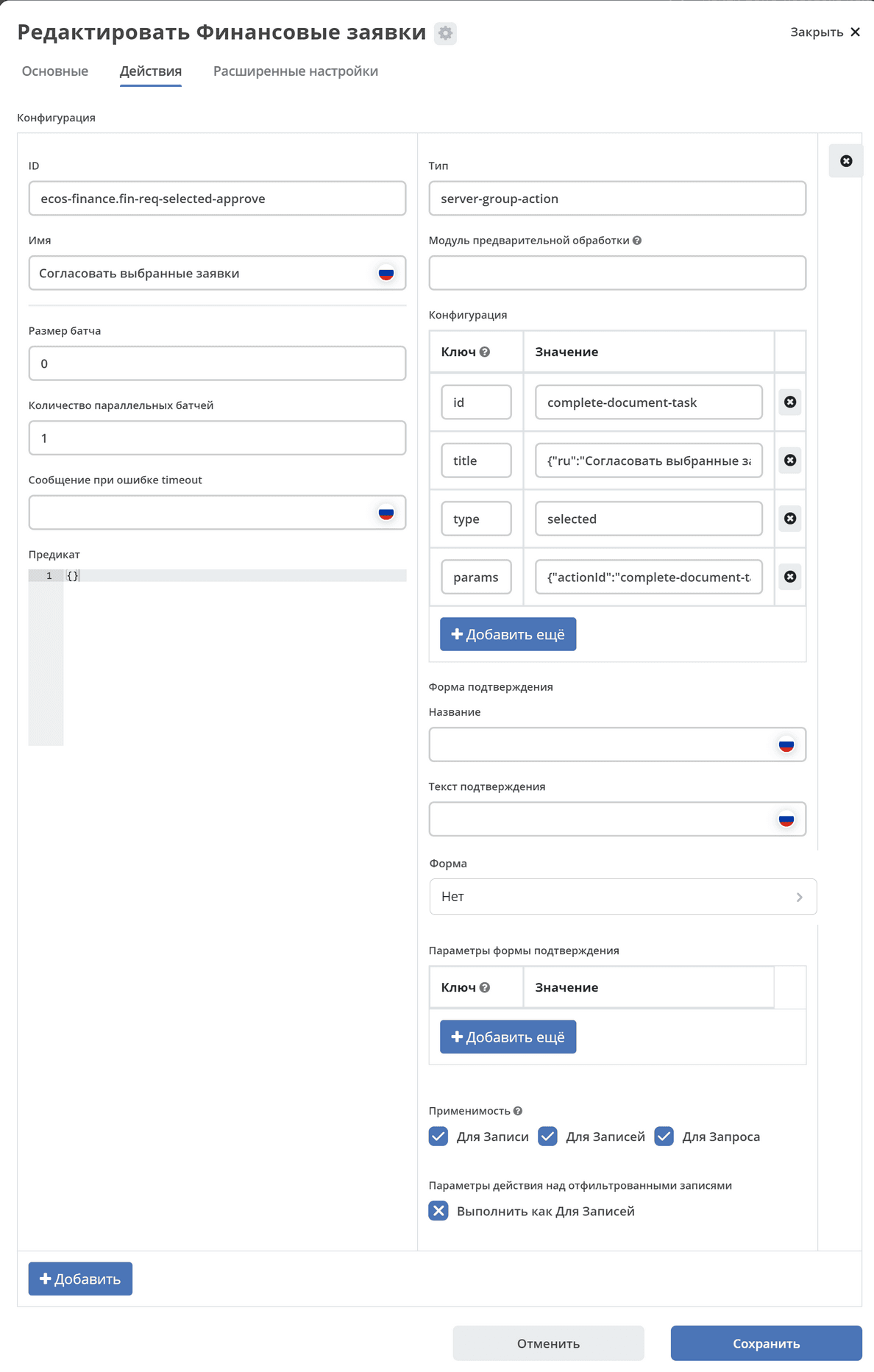

Example of batch approval action for selected requests:

No.	Name	Value
1	ID	ecos-finance.fin-req-selected-approve
2	Name	Approve selected requests
3	Batch size	0
4	Number of parallel batches	1
5	Timeout error message	not specified
6	Predicate	not specified
7	Type	server-group-action
8	Preprocessing module	not specified
9	Configuration key value	id: complete-document-task title: {"ru":"Согласовать выбранные заявки","en":"Approve selected requests"} type: selected params: { "actionId": "complete-document-task", "tasks": "[{\"taskId\": \"confirm-task\", \"transition\": \"Approve\"}]", "defaultComment": "Send from mass approve", "workflowDefinitions": "[\"finreq-ar\",\"flowable-confirm-sub-process\",\"flowable-confirm-sub-process-fin-ap\"]" }
10	Confirmation form name	not specified
11	Confirmation text	not specified
12	Form	not specified
13	Confirmation form parameters	not specified
14	Applicability	all true

Applicability

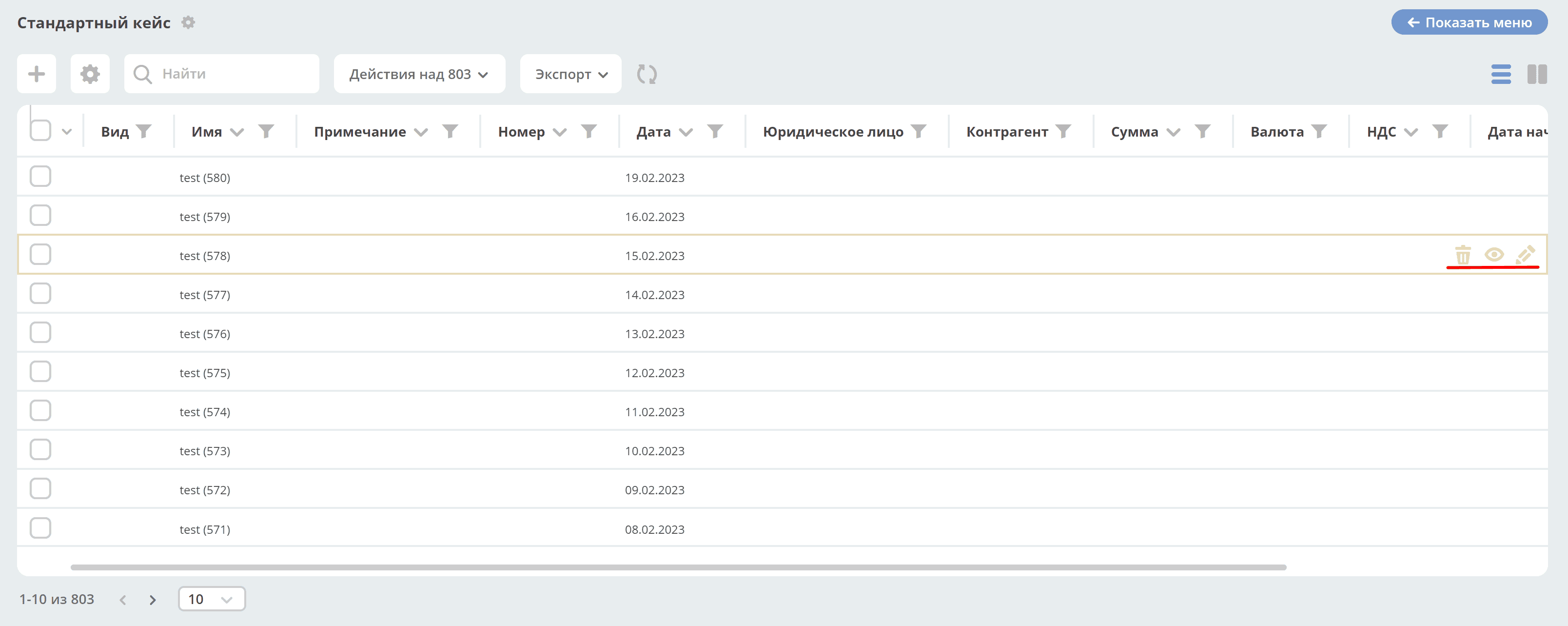

1. For record

Actions for a record in the journal:

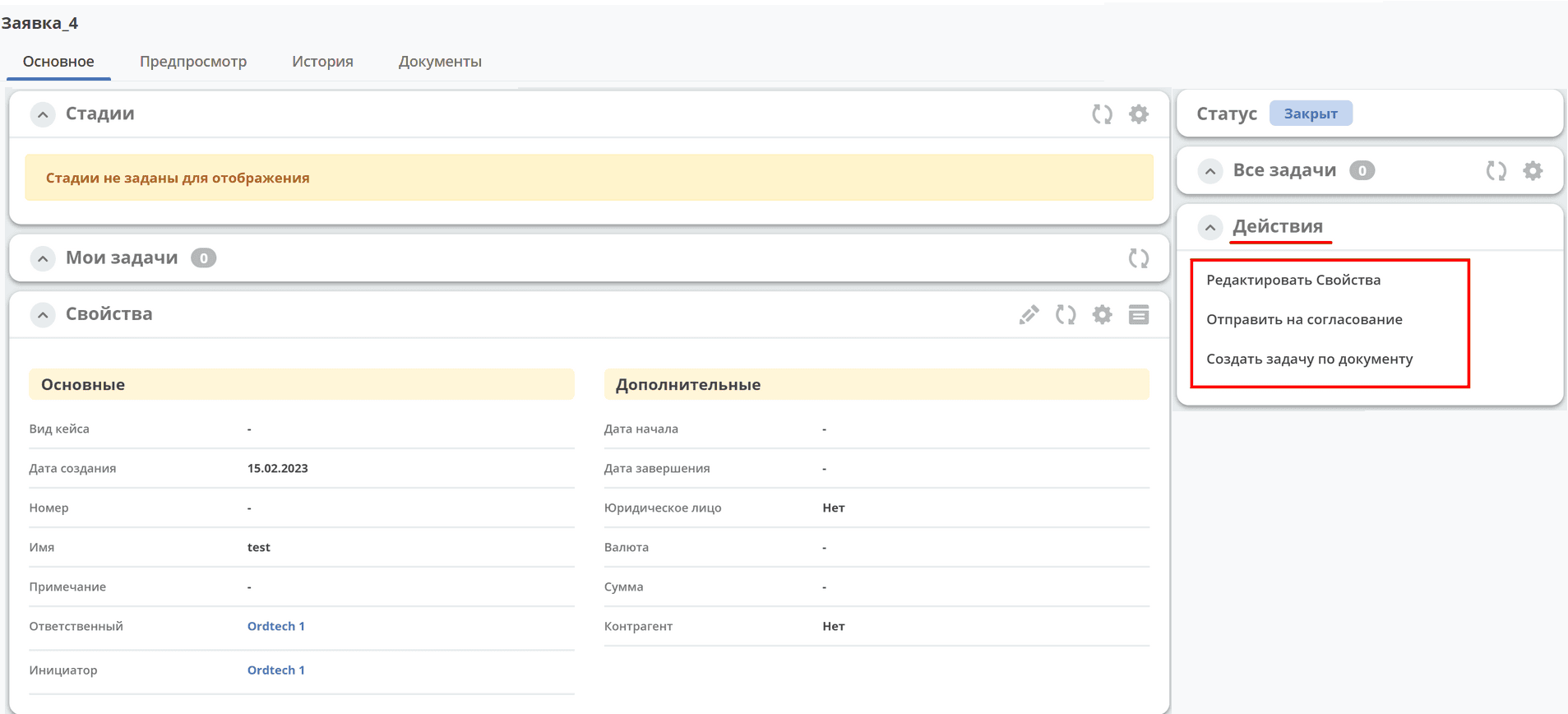

in the card in the «Actions» widget:

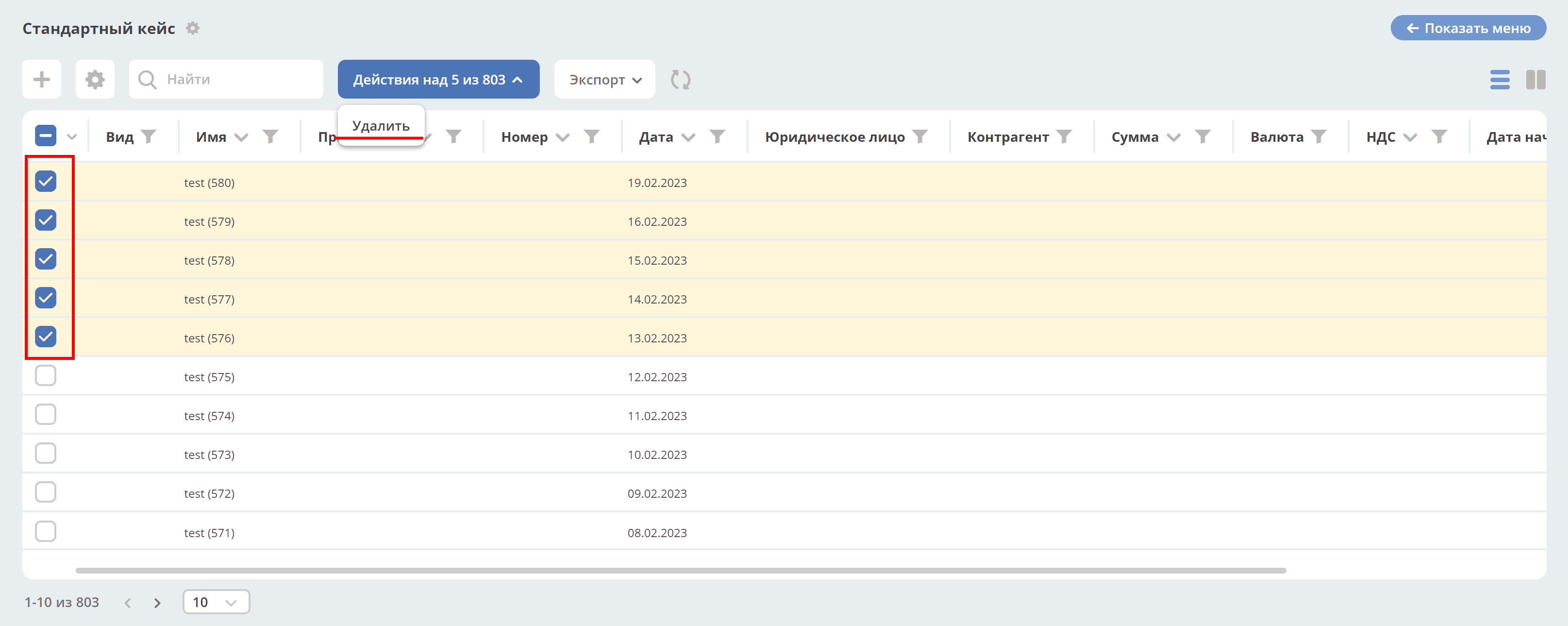

2. For records

Actions on selected records:

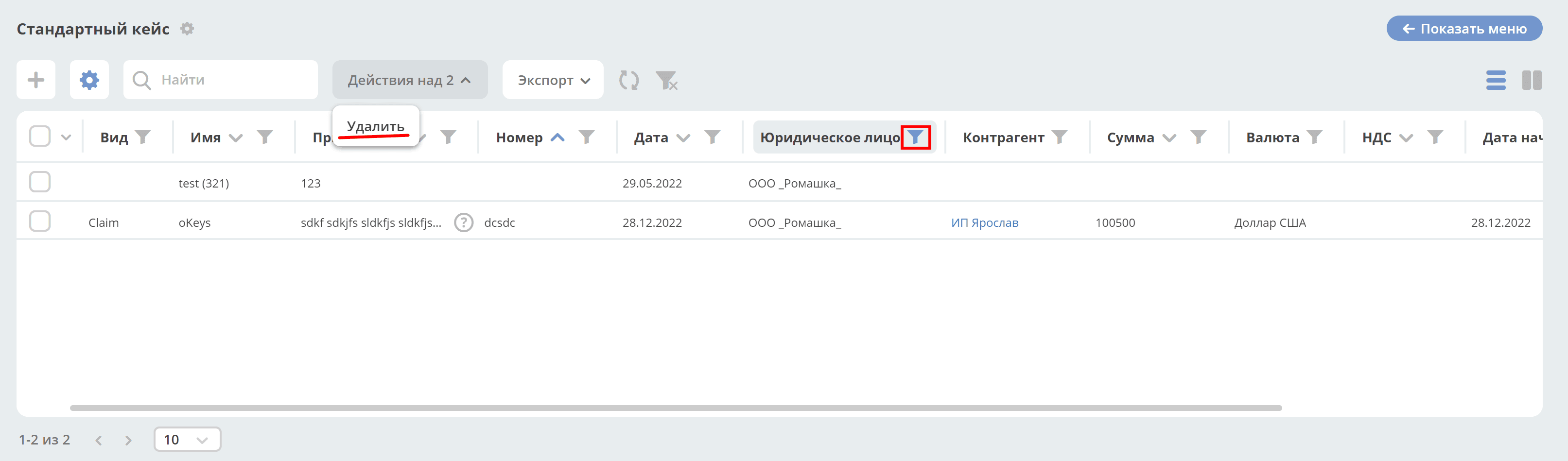

3. For query

Actions on filtered records:

Search criteria is sent to the server, the server performs paginated execution of the batch action.

Execute as for records

Flag determines that the logic for iterating through pages and executing batch action should be performed on the frontend (e.g., for working with digital signatures).

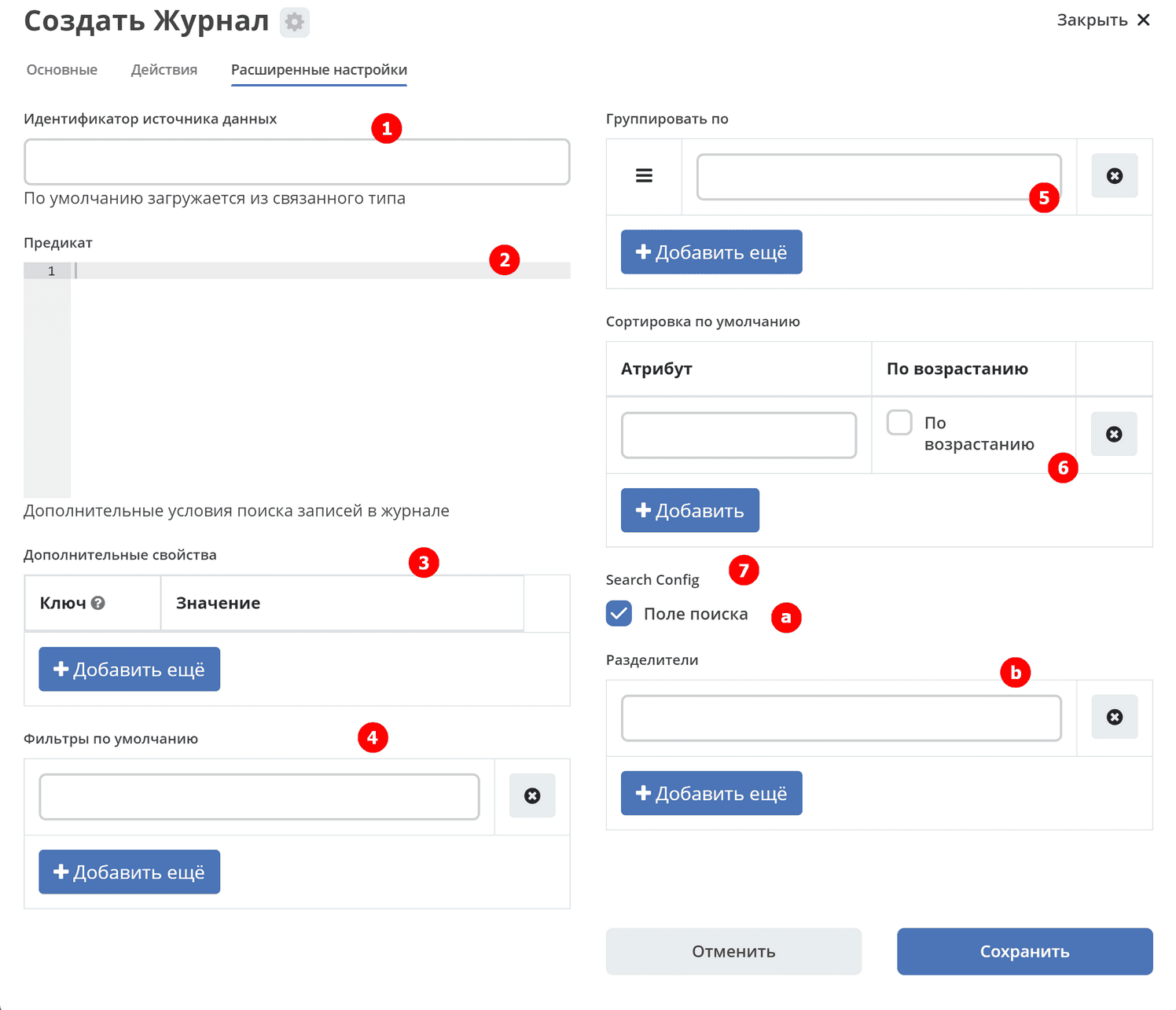

Advanced settings

No.	Name	Description
1	Data source identifier	[to be specified]
2	Predicate	Predicate input. Predicate language
3	Additional properties	Properties that allow adding arbitrary information to the journal without requiring system modifications.
4	Default filters	Add default filter. For example, {"t":"eq","att":"name","val":"123"} Filter by attribute name — attribute value = 123.
5	Group by	Add columns for grouping.
6	Default sorting	Specify attributes for default sorting.
7	Search Config	Search configuration.
a	Search field	Unchecked checkbox — journal records search panel is hidden. If checkbox is unchecked, search query via URL with query parameter is ignored.
b	Delimiters	Search delimiters to allow specifying CONDITION_1 OR CONDITION_2 in one line. For example, if the delimiter is |, then searching for «Contains abc|def» will result in search query «Contains abc OR Contains def».
