Formatters

Formatters define how attribute values are displayed in journal column cells. Each formatter type sets its own appearance and cell behavior — from plain text to colored indicators, links, dates, and script-based computations. A formatter is set in the journal column configuration in the formatter field.

Note

Computed attributes can be used in formatters.

Settings

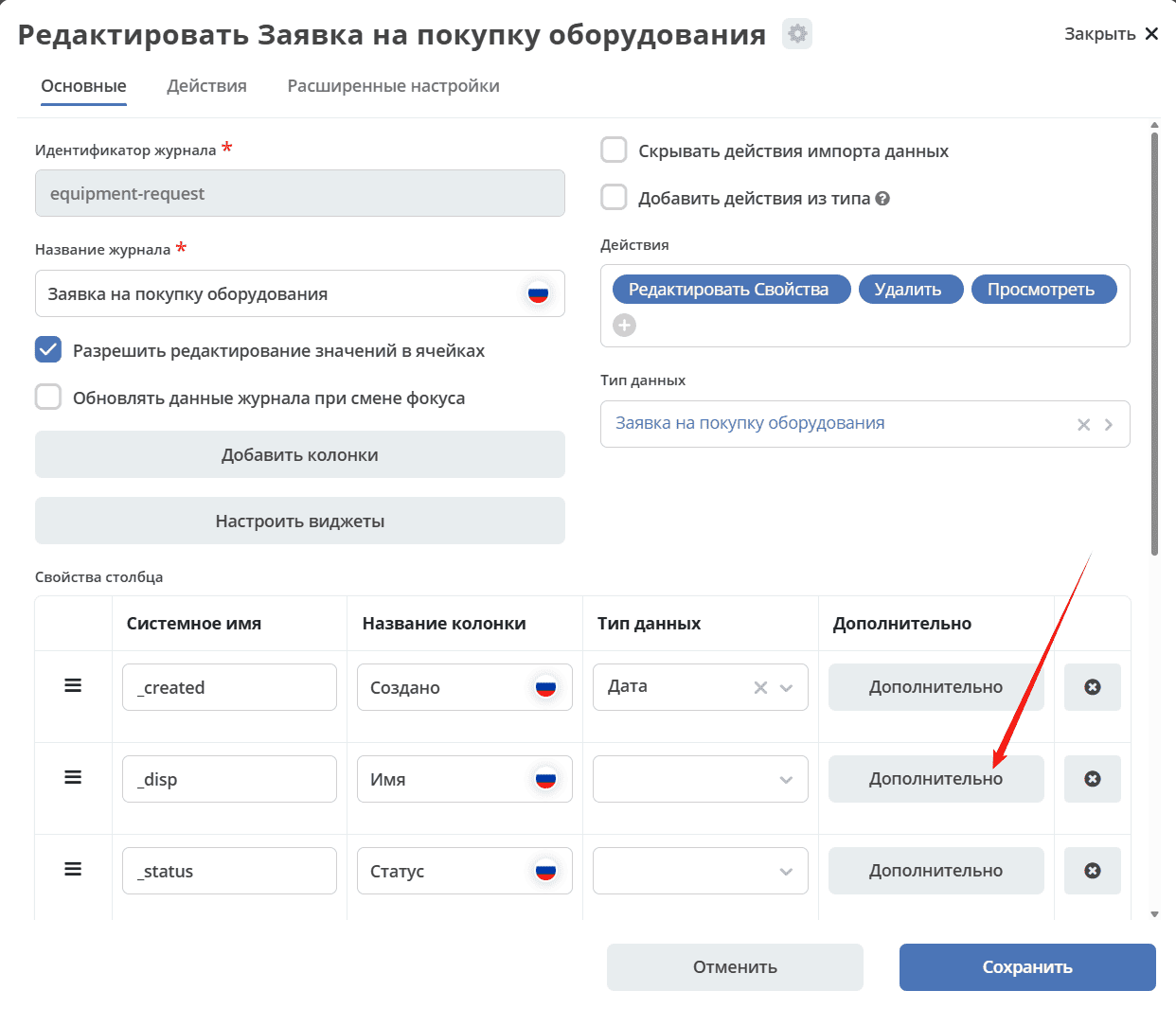

Go to the administration section > Journals > find the required journal > Edit action. Navigate to Advanced.

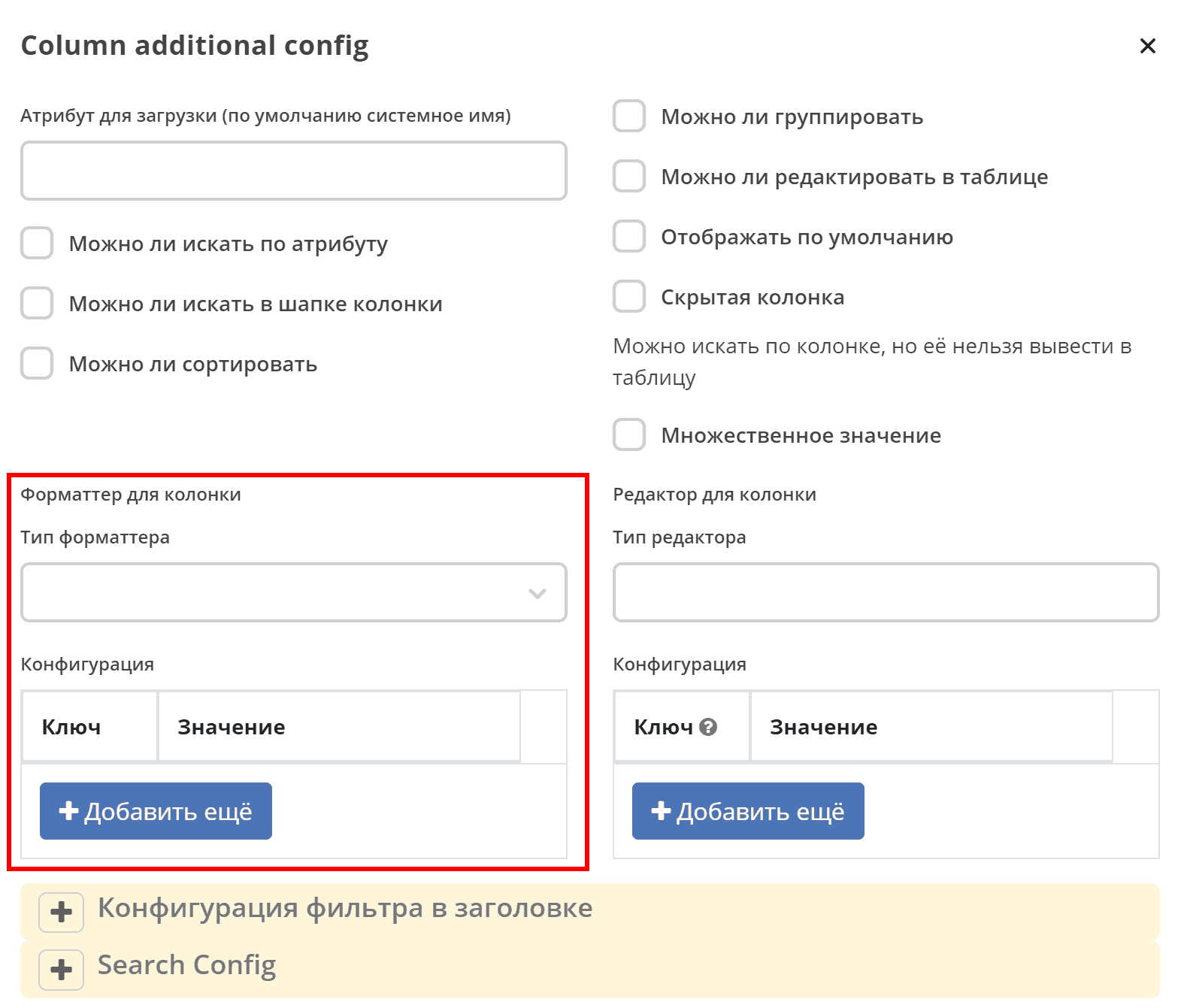

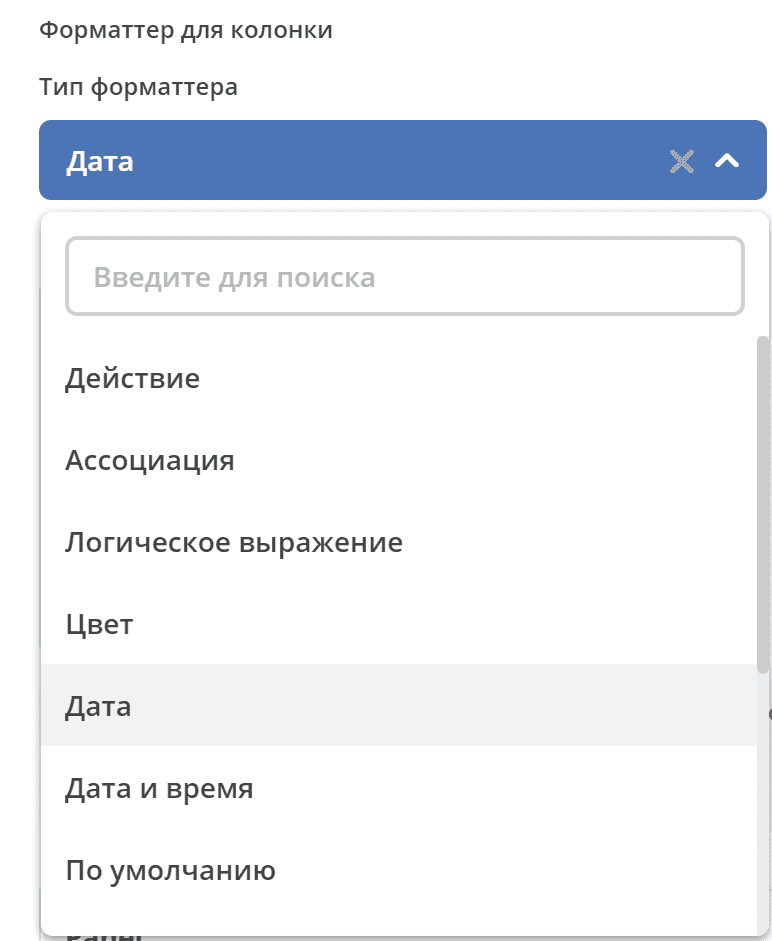

Select a formatter from the list and fill in the key-value pair:

Types

AssocFormatter / Association

Type: assoc

Configuration:

Key	Value
sourceId	Association identifier
openInBackground	Open in a new ECOS tab
openNewBrowserTab	Open in a new browser tab

ActionFormatter / Action

Type: action

Configuration:

Key	Value
type	<action type>
actionId	<action type id>

The journal row is expected to contain an id or recordRef — the record ref required to perform the action.

Example:

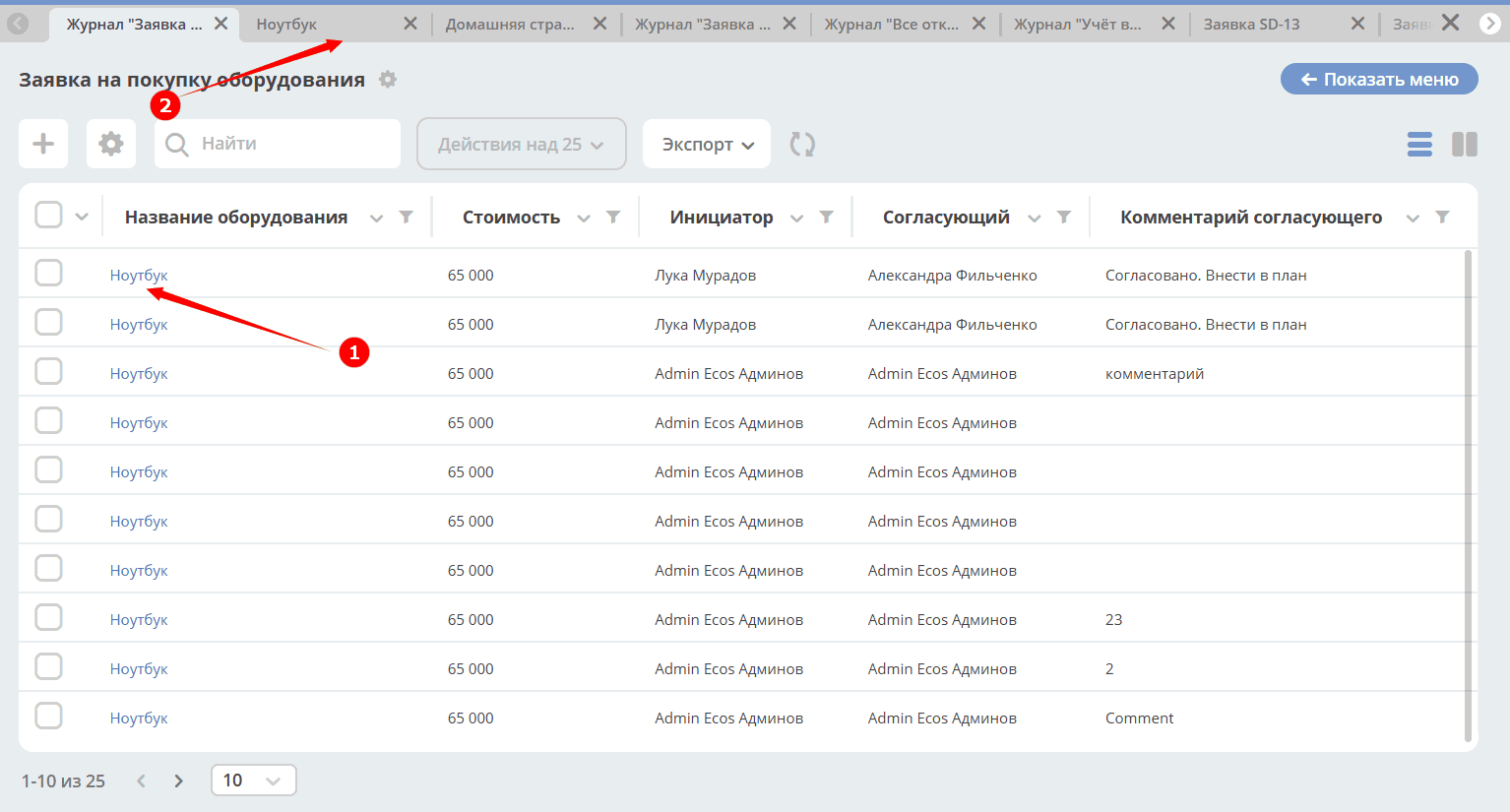

Clicking the information in field (1) opens a dashboard with the document data (2) in an adjacent Citeck tab:

Formatter configuration:

where:

• type — view

• actionId — view-dashboard

BooleanFormatter / Boolean

Type: bool

Configuration:

A simple formatter that returns «Yes» or «No» in the cell.

ColoredFormatter / Color

Type: colored

A universal formatter for displaying values with color indication.

Features

• Support for both predefined colors (via CSS classes) and custom HEX colors.

• Using an identifier for color mapping and a localized value for display.

• Ability to display a color indicator as a pointer or background.

• If showPointer is set to false, the background color is displayed as a rounded oval.

• Support for new and legacy journal formats.

Configuration Parameters

Parameter	Type	Default	Description
color	Object	{}	Mapping of object values to colors.
showPointer	Boolean	false	Whether to show a color pointer. If false, shows a rounded oval background.
defaultColor	String	'#FFFFFF'	Default color for values not found in color. Can be a HEX or named color.
fn	String/Function		Script or function for determining the text color.

Predefined colors

The formatter supports the following predefined colors:

• green;

• yellow;

• pink;

• red.

For custom colors, use the HEX format (e.g. «#FF0000»).

Configuring the condition for displaying a value in a specific color depending on the attribute data value

The function must return a string with a CSS color (WebColor or HEX):

if (cell.disp.length > 2) return "red"

or:

if (cell.disp.length > 2) return "#FF0000"

Usage

Basic usage with predefined colors

- id: priority
  name:
    ru: Приоритет
    en: Priority
  type: TEXT
  editor:
    type: select
  formatter:
    type: colored
    config:
      color:
        low: green
        medium: yellow
        high: pink
        urgent: red

Usage with HEX colors

- id: priority
  name:
    ru: Приоритет
    en: Priority
  type: TEXT
  editor:
    type: select
  formatter:
    type: colored
    config:
      color:
        low: '#00FF00'
        medium: '#FFFF00'
        high: '#FF69B4'
        urgent: '#FF0000'

Usage with display pointer

- id: priority
  name:
    ru: Приоритет
    en: Priority
  type: TEXT
  editor:
    type: select
  formatter:
    type: colored
    config:
      color:
        low: green
        medium: yellow
        high: pink
        urgent: red
      showPointer: true

Usage with default color

- id: priority
  name:
    ru: Приоритет
    en: Priority
  type: TEXT
  editor:
    type: select
  formatter:
    type: colored
    config:
      color:
        low: green
      defaultColor: '#CCCCCC'

Usage with named default color

- id: priority
  name:
    ru: Приоритет
    en: Priority
  type: TEXT
  editor:
    type: select
  formatter:
    type: colored
    config:
      color:
        low: green
      defaultColor: 'red'

Script-based color formatting

- id: priority
  name:
    ru: Приоритет
    en: Priority
  type: TEXT
  editor:
    type: select
  formatter:
    type: colored
    config:
      fn: 'if (cell.value > 2) return "#e2e2e2"'
      defaultColor: '#FFFFFF'

DateFormatter / Date

Type: date

Configuration:

Key	Value
format	Date format (default 'DD.MM.YYYY')

DateTimeFormatter / Date and Time

Type: datetime

Configuration:

Key	Value
format	Date-time format (default 'DD.MM.YYYY HH:mm')
relative	Flag that displays elapsed time as a relative value

DefaultFormatter / Default

Type: default

Configuration:

Always returns the string value derived from the attribute value. If the cell has a boolean value, it returns «Yes» or «No».

DurationFormatter / Duration

Type: duration

Configuration:

Key	Description
showSeconds	When applied in the journal, the value is displayed in the format 1d 2h 30m 2s. Possible values: true / false. By default seconds are shown — showSeconds = true.
maxAsHours	When applied in the journal, the duration is converted to hours, i.e. 2d 3h 30m = 51h 30m. Possible values: true / false.

Example:

formatter:
  type: duration
  config:
    maxAsHours: true

FileNameFormatter / File Name

Type: filename

Configuration:

Always returns a document link of the form:

<a href="${URL.DASHBOARD}?recordRef=${row.id}" target="_blank" rel="noopener noreferrer">
  <icon />
  { НАЗВАНИЕ ЯЧЕЙКИ}
</a>

HtmlFormatter / HTML

Type: html

Configuration:

Key	Value
html	String with HTML code

LinkFormatter / Link

Type: link

The Link formatter is used for journal cells, using fields (columns) as variables.

Link opening configuration options

List of options:

updateUrl {boolean}
openNewTab {boolean}
openNewBrowserTab {boolean}
reopenBrowserTab {boolean}
closeActiveTab {boolean}
openInBackground {boolean}
pushHistory {boolean}
replaceHistory {boolean} - default true, if updateUrl is true
rerenderPage {boolean} - needed to replace link in the router and start rerendering page

Template-based link using variables

The ability to build links from a template using variables (record attributes/journal fields) has been added. The link URL template is set in the column formatter parameters in the journal configuration (Formatter for column).

Link template example:

urlTemplate: "https://example.com/path?var1=${columnId1}&var2=${columnId2}"

where columnId1 and columnId2 are journal columns.

The cell value is used as the link label. If no value is present, the label equals url.

The link is not displayed if the journal cell is in edit mode (i.e. data is being entered into the cell).

For example:

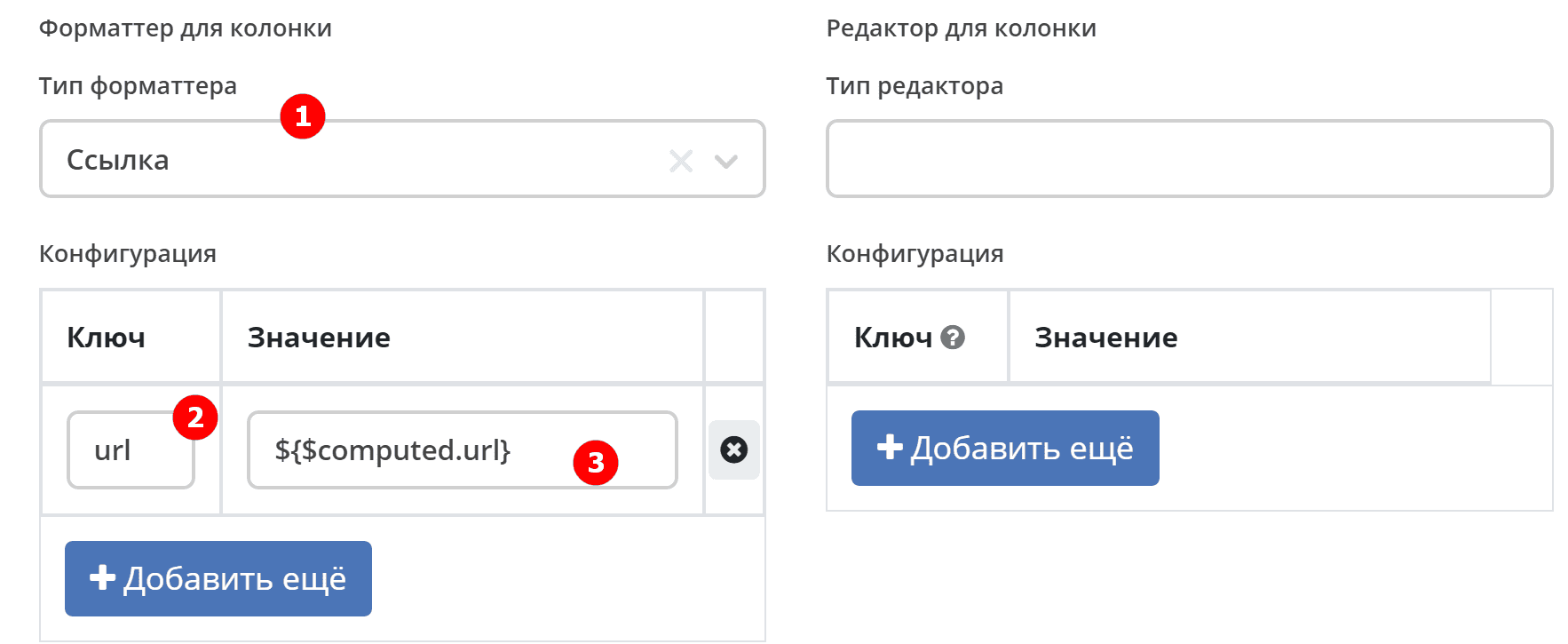

Select the Link (1) formatter and specify:

• key (2) — url,

• value (3) — ${$computed.url}.

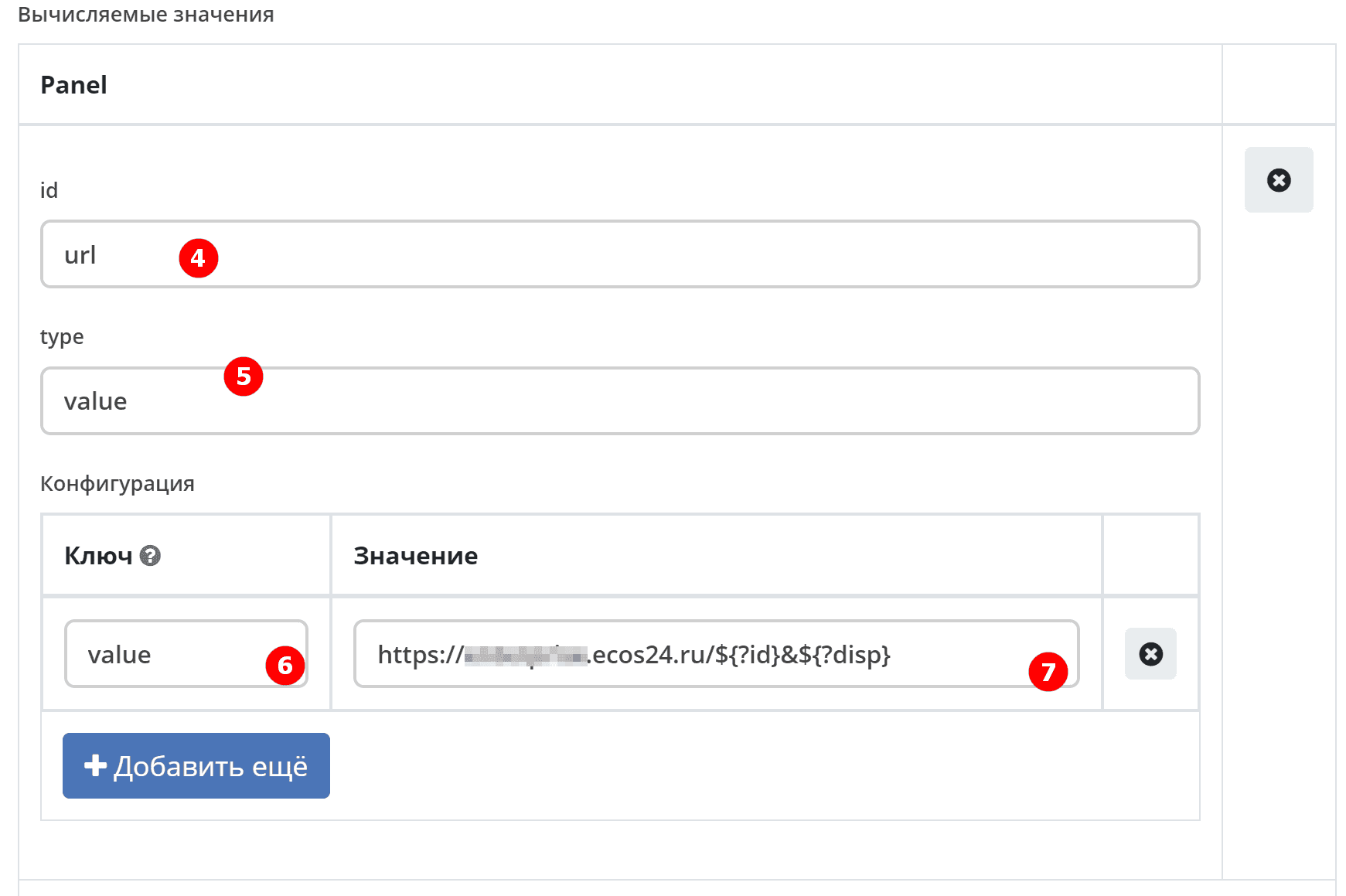

Specify:

• id (4) — url,

• type (5) — value.

In the configuration specify:

• key (6) — value,

• value (7) — https://host/${?id}&${?disp}.

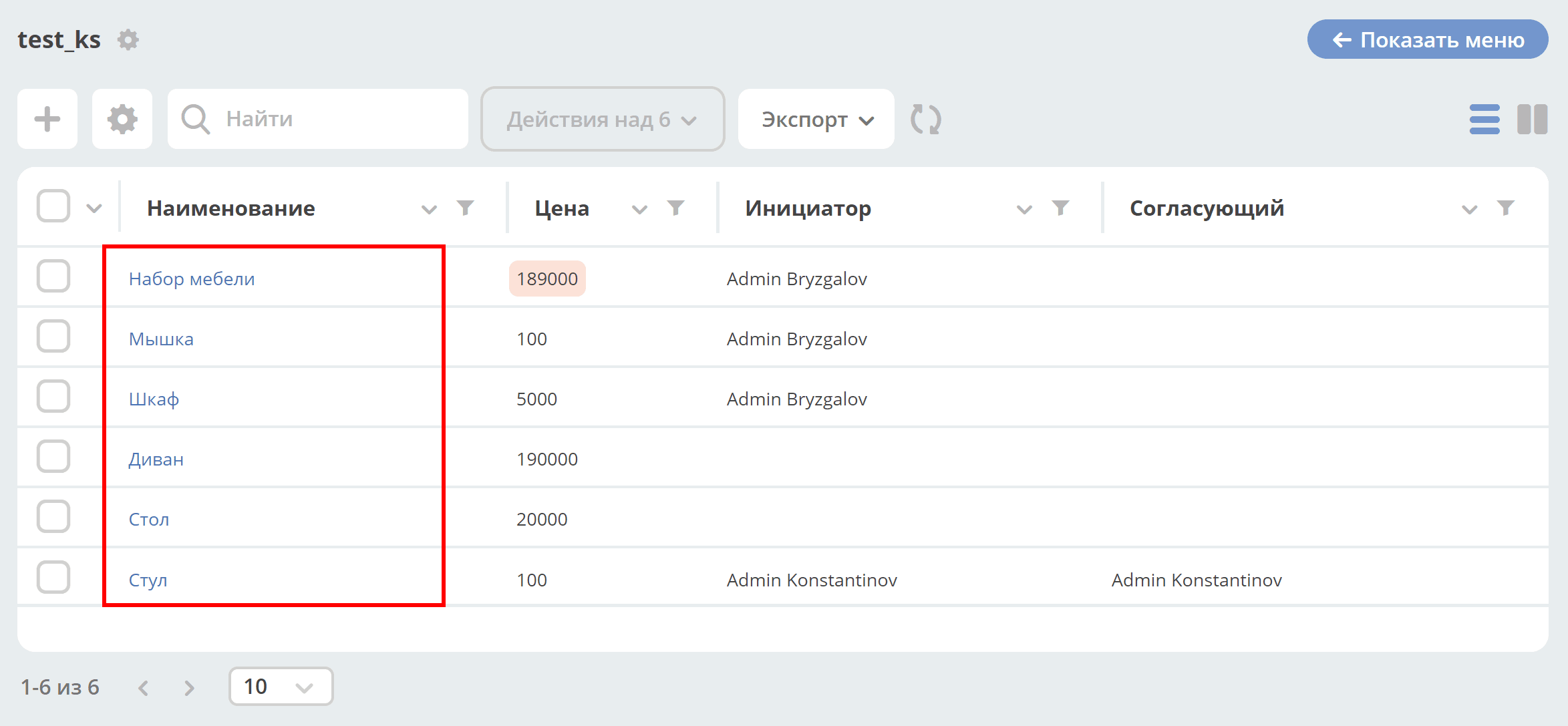

In the journal it looks as follows:

Clicking the label will open the link.

NumberFormatter / Number

Type: number

Configuration:

Key	Description
mask	mask where {value} is the number itself
locales	Which locale to use for formatting. It determines how thousands and decimal numbers are separated (by dot, comma, or space). Default is the current locale.
maximumFractionDigits	number of decimal places
decimalSeparator	how decimal numbers are separated. Default depends on locale
thousandSeparator	how thousands are separated. Default depends on locale.

Example:

mask: {value} руб.
locales: ru
maximumFractionDigits: 16
decimalSeparator: .
thousandSeparator: ,

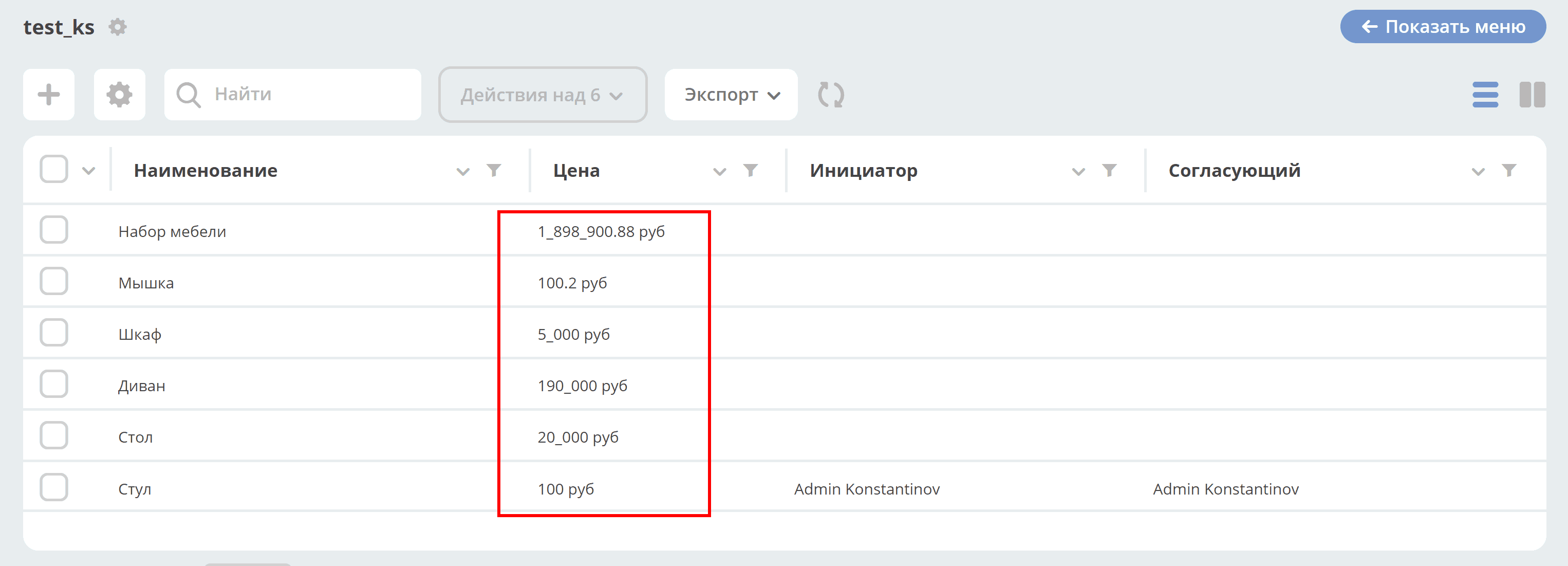

For example:

Key	Description
mask	{value} RUB
maximumFractionDigits	2
decimalSeparator	.
thousandSeparator	_

ScriptFormatter / Script

Type: script

Configuration:

Key	Value
fn	Type: String Function body. return can be used anywhere in the script. The following parameters are available in the function body: _ — the Lodash library (https://lodash.com/docs/) t — a helper localization function. Takes a key and returns the localized value, or the key itself if no translation exists. vars — variables from the configuration. cell — the current cell value. row — the entire row. index — the value index in the cell (for multiple values). The function can return values of different types: Boolean — replaced with a localized value using the key boolean.yes for true and boolean.no for false; Number or String — the result is displayed in the cell; Object — interpreted as the configuration for the next formatter in the format {"type":"...", "config": {...}}. If the object contains cell, its value is used as the cell value for the next formatter. If the object does not contain cell, the original cell value is used.
vars	Type: Object Additional variables that may be needed during script execution. Inside the script they can be accessed via vars.yourVariable, where yourVariable is the key name in the vars object. This is useful, for example, when you need to dynamically load additional data through the formatter functionality, which replaces all occurrences of the form ${...} with the corresponding attribute values. For example, if you specify vars: { currency: "${currencyAssoc.code!'unknown'}" }, then in the script via vars.currency you can get the currency code from the currencyAssoc association.

Usage example:

formatter:
  type: script
  config:
    vars:
      processingStatus: ${processingStatus}
    fn: return Citeck.messages.global[vars.processingStatus];

If you need to call another formatter, for example HtmlFormatter:

formatter:
  type: script
  config:
    fn: |
      const cellNum = _.parseInt(cell) || 0;
      let link = "";
      if (cellNum > 100000) {
        link = "https://duckduckgo.com/";
      } else if (cellNum > 1000) {
        link = "https://www.yahoo.com/";
      } else {
        link = "https://www.google.com/";
      }
      return {
        "type": "html",
        "config": {
          "html": "<a href='" + link + "' target='_blank'>" + link + "</a>"
        }
      };

WorkflowPriorityFormatter / Workflow Priority

Type: workflowPriority

to be updated
